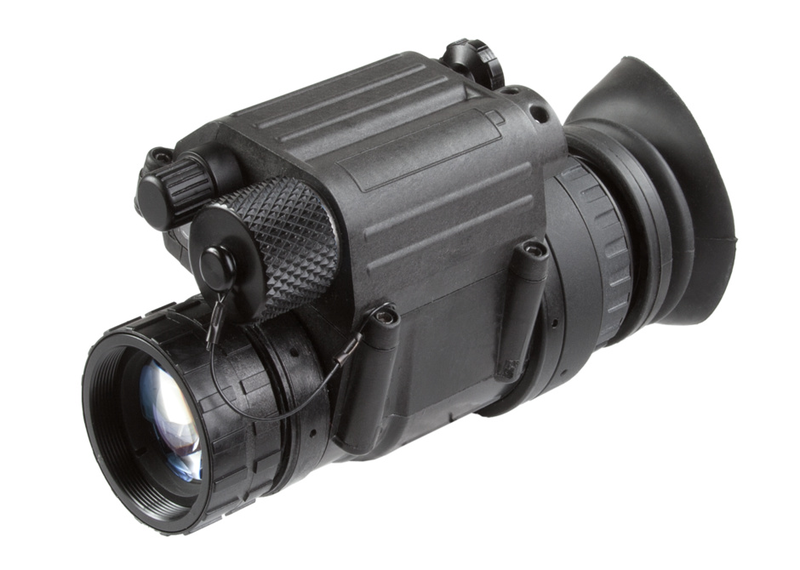

AGM PVS-14 NL1i NIGHT VISION MONOCULAR

PART NO.: 11P14122453011i
product
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
€ 2,742.00
Add to cart
Other Models ARE Also Available:
Package Includes
    Packing Box | Soft Carrying Case | Head Mount Assembly | Brow Pad | Helmet/ Head Mount Adapter | Sacrificial Window | Demist Shield | Battery | Lens tissue | User Manual
Downloads export restrictions: Important Export Restrictions! Some products on this web site are meant for use or resale only within the EU zone and are subject to EU export control regulations. Licensing may be required for exporting outside the EU countries. Please contact us (info@agmglobalvision.eu) for additional information.

Description and Features

The AGM PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. The PVS-14 design was originally commissioned by the United States Military to enable nighttime operations. The PVS-14 monocular is a full-featured unit, weighing less than 12.4 ounces/ 0.32 kilograms. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. This monocular is used globally in some of the most challenging environments. The PVS- 14 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets or weapons, providing night vision capabilities to daytime optical sights. The PVS- 14 monocular conforms to 810G Military standards, and is of the highest quality form and function.
The automatic brightness control ensures a consistent, steady image by automatically adjusting the visual in real time, based on the available light in the area. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. AGM Global Vision’s PVS-14 includes an array of optional accessories to support virtually any operation.


level 1
maximum spots allowed in each zone*
spot size (in) zone 1 zone 2 zone 3
>.015 or larger 0 0 0
>.012 – .015 0 0 0
>.009 – .012 0 0 0
>.006 – .009 0 1 2
.003 – .006 1 2 3
note: not more than 4 spots allowed

  • Compact, rugged design
  • Waterproof
  • Weapon mountable
  • Head or helmet-mountable for hands-free usage
  • Ergonomic, simple, easy-to-operate controls
  • Built-in Infrared illuminator and flood lens
  • Limited 3-Year Warranty

SPECIFICATIONS

Image Intensifier Tube Gen 2+ "Level 1 International" (green phosphor tube)
Cosmetic level of IIT NL1i the best quality
Resolution 51-64 lp/mm
Visible Spots Clear FOV
NL1i manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.
Magnification 1x (3x and 5x optional)
Lens System 26 mm; F/1.2
FOV 40°
Focus Range 0.25 m to infinity
Diopter Adjustment -6 to +4 dpt
Led Indicators Low battery; IR On; Excessive light conditions
Manual Gain Control Yes
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Infrared Illuminator Yes
Battery Type One AA 1.5V Alkaline battery
Battery Life (Operating) Up to 50 hours at 20°C
Operating Temperature Range -51° C to +49° C (-60° F to 120° F)
Storage Temperature Range -51° C to +85° C (-60° F to 185° F)
Weight 0.32 kg (0.7 lbs)
Dimensions 112 × 61 × 61 mm (4.4 × 2.4 × 2.4 in)
Package Includes Night Vision Monocular, Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shield, Manual, Battery

optional equipment

Rhino Mount (PVS-7, PVS-14)

Rhino Mount (PVS-7, PVS-14)

PART NO.: 1955010-2

Rhino Mount (PVS-7, PVS-14)

€ 345.00
Add to cart
MICH Helmet Mount Assembly (PVS-7, PVS-14)

MICH Helmet Mount Assembly (PVS-7, PVS-14)

PART NO.: 6103MHM1

AGM MICH Helmet Mount Assembly is a reliable way to mount the professional-grade night vision monocular or goggles onto a military-standard MICH helmet securely for hands-free tactical use during the night time. The accessory is compatible with Personnel Armor System for Ground Troops (MICH) helmet. This mount can be easily installed and allows to add night vision capability to your helmet. Lightweight and durable, AGM MICH Helmet Mount is designed for use with PVS-7, PVS-14, 6015, and PVS-14 Omega night vision devices. The mount is adjustable in both vertical and horizontal directions and has button for quick one-handed release from helmet bracket. Not available for export.

€ 364.00
Add to cart
AGM 51 degree FOV Lens Kit

AGM 51 degree FOV Lens Kit

PART NO.: 610150K1

AGM 51 degree FOV Lens Kit allows user to upgrade standard 40 degree FOV optics on their NVD. Such drastic increase from 40 to 51 degree will allow user to cover larger areas with minimum movement of NVD and makes it easier to find and keep the object in FOV.

€ 447.00
Add to cart
AGM Sioux940 Long-Range Infrared Illuminator comes included with Rechargeable Battery and Charger

AGM Sioux940 Long-Range Infrared Illuminator comes included with Rechargeable Battery and Charger

PART NO.: 501SIOUX940IR1

AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.

€ 180.00
Add to cart
PASGT Helmet Mount Assembly (PVS-7, PVS-14)

PASGT Helmet Mount Assembly (PVS-7, PVS-14)

PART NO.: 6103PHM1

AGM PASGT Helmet Mount Assembly is a reliable way to mount the professional-grade night vision monocular or goggles onto a military-standard PASGT helmet securely for hands-free tactical use during the night time. The accessory is compatible with Personnel Armor System for Ground Troops (PASGT) helmet. This mount can be easily installed and allows to add night vision capability to your helmet. Lightweight and durable, AGM PASGT Helmet Mount is designed for use with PVS-7, PVS-14, 6015, and PVS-14 Omega night vision devices. The mount is adjustable in both vertical and horizontal directions and has button for quick one-handed release from helmet bracket. Not available for export.

€ 364.00
Add to cart
Weaver adapter for Infrared illuminator

Weaver adapter for Infrared illuminator

PART NO.: 6107WAP1

€ 47.00
Add to cart
Hard Case

Hard Case

PART NO.: 6610HCS1

Protective case, made of solid, robust material and designed special for safe storage and transportation.

€ 105.00
Add to cart
Weapon Mount for PVS-14

Weapon Mount for PVS-14

PART NO.: 6107WMP1

Ideal for a quick scope change when the conditions call for it.

€ 88.00
Add to cart
AGM Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger

AGM Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger

PART NO.: 501SIOUX850IR1

AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.

€ 176.00
Add to cart
AGM Afocal Magnifier Lens Assembly, 3X

AGM Afocal Magnifier Lens Assembly, 3X

PART NO.: 61023XA1

High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.

€ 256.00
Add to cart
AGM Afocal Magnifier Lens Assembly, 5X

AGM Afocal Magnifier Lens Assembly, 5X

PART NO.: 61025XA1

High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.

€ 447.00
Add to cart
