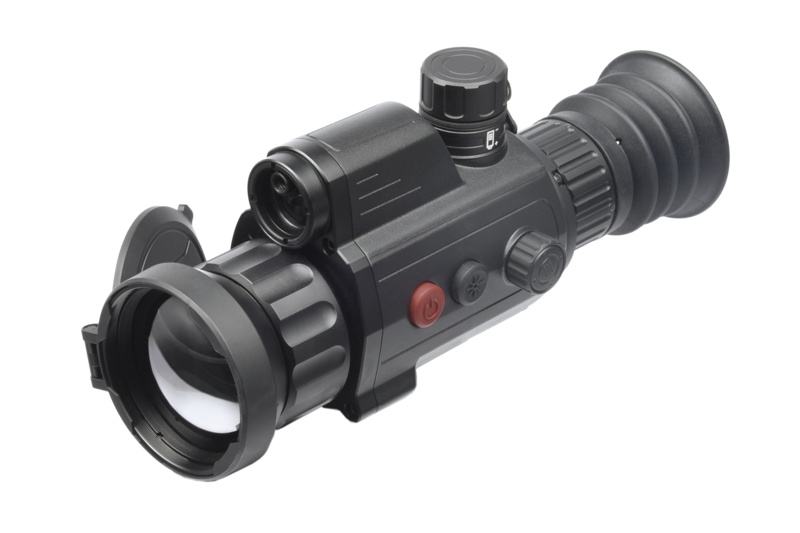

AGM Varmint LRF TS50-640 THERMAL WEAPON SIGHT

PART NO.: #3142555306RA51
product
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
€ 4,671.00
Add to cart
Package Includes
    18650 Rechargeable Battery | ADM Quick Release Mount (made in USA) | USB Cable | Battery Charger | Power Adapter | Lens Tissue | User Manual | EU Plug

Description and Features

The Varmint LRF series of thermal riflescopes from AGM utilize many of the features that shooters have come to know and love in the everpopular Rattler product family, but with one big addition: a 600-meter integrated laser rangefinder. This feature helps alleviate a common issue many shooters find themselves experiencing when hunting with any sort of digital optic, and that is the lack of depth perception that is inherent in optics utilizing a digital screen. The Varmint LRF pairs that LRF functionality with a 12 micron high-sensitivity thermal detector, which works in conjunction with a high quality 1024x768 OLED display. The Varmint LRF scopes are powered by a single, non-proprietary, 18650 rechargeable battery, which provides users with 4.5 hours of continuous use in the field. The compact design of the Varmint LRF even allows some dual-use functionality as a handheld monocular as well, which helps in surveying your surroundings before the spotting and stalking has begun. Pairing excellent optical performance with built-in recording, Wi-Fi compatibility through the AGM Connect app, external power options through the mini USB port, multiple reticle options, multiple color palettes, and 16GB of internal storage capacity, make the Varmint LRF one of the most functionally diverse products in the AGM family


  • 12μm high sensitivity thermal detector
  • Fast 50Hz imaging
  • Built-in laser rangefinder
  • Adjustable color palettes
  • High resolution OLED display
  • Various reticle types and colors
  • 1x, 2x, 4x, 8x digital zoom
  • On-board video recording and image capture
  • Built-in EMMC storage (16 GB)
  • Wi-Fi data transmission
  • Standby mode
  • Up to 4.5 hours continuous runtime
  • External power supply compatibility
  • Waterproof & shockproof
  • 3-year warranty

SPECIFICATIONS

Detector Type 12 μm VOx Uncooled Focal Plane Arrays
Resolution 640 × 512
Refresh Rate 50 Hz
Response Waveband 8 μm to 14 μm
NETD Less than 35 mk (@25°C), F#=1.0
Lens System 50 mm; F1.0
Field of View (H×V) 8.78° × 7.03°
Magnification 2.5× – 20×
Digital Zoom 1×, 2×, 4×, 8×
Detection Range (6’ object) 2,500 m/yd
Eye Relief 45 mm
Monitor 1024x768, 0.39 inch, OLED
FFC (Flat Field Correction) Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion
Highest Temperature Spot Tracking Yes
Scene Mode Jungle, Recognition
Reticle 5 types, 4 colors, on/off
Laser Range Finder Up to 600 m, ±2 m accuracy
Laser Wavelength 905 nm
Laser Safety Class Class 1
Boresight Adjustment Digital Controlled
Boresight Increment 0.15 mil / 0.51 MOA
One Scale Interval (Reticle #4) 2 mil / 6.75 MOA
WiFi Hotspot Yes
Sleep Mode Yes
Picture In Picture Mode Yes
Burn Prevention Yes
Built-in Storage 16 GB EMMC
Video Recording On-board video recording
Image Capture Yes
CVBS Output Yes (via USB)
Battery Type One 18650 (3.7V) Lithium Rechargeable Batteries
Battery Operating Time (WiFi off) Up to 4.5 hours
Battery Capacity Display Yes
External Power 5 VDC/2 A, USB Type-C
Working Temperature -20°C to 55°C (-4°F to 131°F)
Protection Level IP67
Drop Test Height 1.5 m (4.9 ft)
Dimensions (L×W×H) 210 × 74 × 109 mm (8.3 × 2.9 × 4.3 in)
Weight (w/o batteries) 722 g (1.59 lb)
