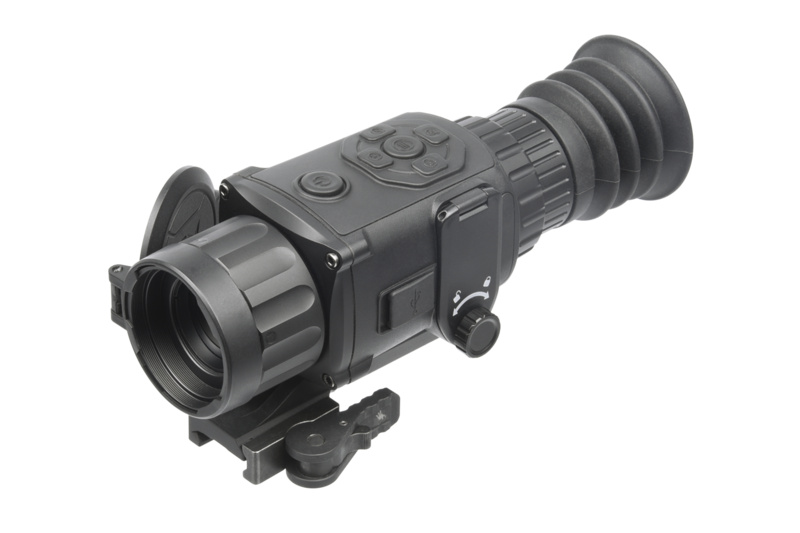

The AGM Rattler TS25-384 and Rattler TS35-384 are the compact
thermal imaging scopes developed for 24 hours operation under any
weather and environmental conditions. Two objective lens options
allow the customer to choose perfect unit for your needs where 25 mm
lens designed for short range shooting, while the 35 mm lens model will
be great for medium range missions.
The device is used as a thermal rifle scope or
handheld monocular. The scope is mainly applied to scenarios such as
patrolling, and hunting, etc. Thermal image riflescope has 384×288 thermal detector and
1024×768 OLED monitor, which provides clear image under harsh
environment conditions like darkness, fog, smoke, dust, rain, snow,
wood, camouflage, etc.
Powered with two CR123 batteries the AGM Rattler TS-384 gives
up to 4.5 hours of continuous operation time. An external 5V power
bank (battery pack) can be easily connected via a USB connector for
a significant increase of operating time. Onboard Wi-Fi module for live
video streaming and video/images recording via application are also
available.
Resolution | 384x288 |
Detector | 17μm, Uncooled, 50Hz Vanadium Oxide Uncooled FPA, NETD less than 35 mk (@25°C), Response Waveband - 8 μm to 14 μm |
Lens System | 25 mm; F/1.0 |
Optical Magnification | 1.5x |
Field of View | 14.9° x 11.2° |
Digital Zoom | 2x, 4x, 8x, PIP |
Observation Distance | Max. 882 m |
Diopter Adjustement | -5 to +3 dpt |
Eye Relief | 45 mm |
Display | 0.39-inch, OLED, 1024 × 768 |
Palettes | WHITE HOT, BLACK HOT , FUSION (the hot part is white-colored. From high temperature to low temperature, the image is colored in from white, yellow, red, pink to purple) RED HOT (the hot part is red-colored in view. The higher the temperature is, the redder the color is) |
Hot tracking | Yes, enable/disable hot spot mark (marking the spot of highest temperature) |
Reticles | 5 types, 3 colors, on/off |
Hotspot and WiFi | Yes |
Distance Measurement | Yes (Stadiametric range finder) |
Trajectory correction | 5 Profiles One shot zero correction. |
Scene Mode |
2 modes Recognition mode improves an image so that the object edge is more distinct. Jungle mode is more suitable for hunting environment because of the highlight function of small objects. |
Standby mode | Yes |
Video Recording | Yes |
Picture Snapshot | Yes |
DPC (Dead pixel correction) | Yes |
Uniformity Correction | Auto, Manual, External Correction |
Storage (memory) | Built-in EMMC (16 GB) |
Language of the menu | 17 languages (English, Russian, German, Czech, French, Spanish, Danish, Norwegian, Swedish, Finnish, Hungarian, Italian, Polish, Portuguese, Romanian, Slovak, Spanish) |
Battery Type | Two CR123 |
Battery Life (Operating, 20°C) | Up to 4.5 hr |
External Power Supply | 5V USB |
Operating Temperature Range | -20°C to +55°C (-4°F to +131°F) |
Degree of Protection | IP67 |
Shock and Vibration | 750 g/ms |
Weight | 502 g (1.1 lb) |
Overall Dimensions | 226 × 62 × 82 mm (8.9 × 2.4 × 3.2 in) |
AGM Solar Power Bank 30000 Mah
PART NO.: 6628XPB31
This universal power bank / QI charger is equipped with a solar panel that captures the energy of daylight and converts it charging power for your devices. You can charge any devices because it has built-in Micro-USB, USB-C and Lighting cables as well as QI wireless technology. With a rugged shockproof body, rain-proof design and a 30,000 mAh battery, it’s ideal for long, extreme hikes. Simply attach this rain-resistant solar-powered battery pack to your backpack and your gadgets will always have extra power.
see moreAGM-2111 ADM Double Lever QR Mount for Rattler TS Family
PART NO.: 6306LMR1
AGM knows that your riflescope is typically only as reliable as your mounting solution, so AGM has sought out and partnered with one of the most reliable names in American-made mounting systems, American Defense Mounts. We offer this AGM-2111, a mount from ADM specifically designed for the Rattler TS family of thermal imaging riflescopes. This advanced mount features two throw levers for added mount security and optimized in both height and length in order to offer experienced shooters as much flexibility as possible when utilizing our AGM rifle mounted optics on a multitude of the most common shooting platforms with Weaver/Picatinny rail. All ADM mounts offer tightening adjustability with no tools required, which makes tightening in the field quick and easy. This weapon mount is constructed solely using high-quality aluminum parts.
AGM-2112 ADM Short Single Lever QR Mount for Rattler TS family
PART NO.: 6306SMR1
AGM knows that your riflescope is typically only as reliable as your mounting solution, so AGM has sought out and partnered with one of the most reliable names in American-made mounting systems, American Defense Mounts. We offer this AGM-2112, a mount from ADM specifically designed for the Rattler TS family of thermal imaging riflescopes. This mount is optimized to offer experienced shooters as much flexibility as possible when utilizing our AGM rifle mounted optics on a multitude of the most common shooting platforms with Weaver/Picatinny rail. All ADM mounts offer tightening adjustability with no tools required, which makes tightening in the field quick and easy. This weapon mount is constructed solely using high-quality aluminum parts.
AGM-2115 ADM Single Lever QR Mount for Rattler TS family
PART NO.: 63061151
AGM knows that your riflescope is typically only as reliable as your mounting solution, so AGM has sought out and partnered with one of the most reliable names in American-made mounting systems, American Defense Mounts. We offer this AGM-2115, a mount from ADM specifically designed for the Rattler TS family of thermal imaging riflescopes. This mount is optimized in both height and length in order to offer experienced shooters as much flexibility as possible when utilizing our AGM rifle mounted optics on a multitude of the most common shooting platforms with Weaver/Picatinny rail. All ADM mounts offer tightening adjustability with no tools required, which makes tightening in the field quick and easy. This weapon mount is constructed solely using high-quality aluminum parts.
Long, low profile one-piece mount
PART NO.: 0581RXH
Special, longer weaver mount, low profile, made specifically to fit on Merkel RX Helix and similar rifles.
Length of the mount is 125 mm and spacing between locking levers (center to center) is 110 mm.
Can be used also on Sako S20, CZ600 Alpha and Ergo, Haenel Jaeger NXT, Sabatti Saphire.
Material: Base -> High-grade steel, CNC machined from solid
material, black oxide. Upper part (adapter for NV/Thermal
device) -> high grade aluminium alloy
Recoil lug: milled from solid material (no insert)
Fixation: QR levers - adjustable and can be put in position as
you like
Distance: from first locking point to second 53 mm
Fits: Picatinny rails with minimum length of 90 mm
