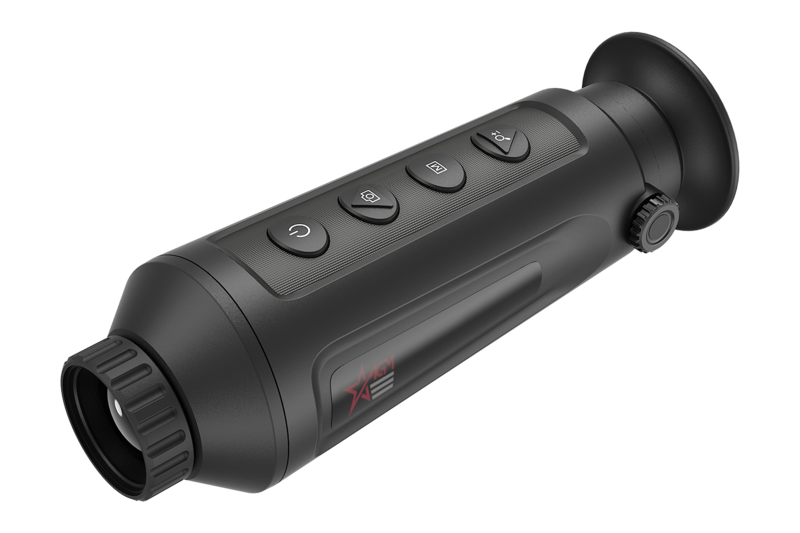

AGM Taipan TM25-384 THERMAL IMAGING MONOCULAR

PART NO.: 3092451004TA21
product
thumbnail
thumbnail
thumbnail
€ 2,042.00
Add to cart
Downloads

Description and Features

DELIVERY in DECEMBER, order now, get free shipping and free gifts, be the first to test new AGM 2021 thermal products

The Taipan handheld observational thermal monocular is equipped with a 384×288 infrared detector and a 1280×960 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.

Distance Measurement:
  • The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
  • Hot Spot Mark:
  • The device detects and marks the hot spot of highest temperature.
  • Mode Switch:
  • Device supports pallet switch and distance measurement.
  • Storage:
  • Built-in memory module supports video recording/snapshot capturing.
  • Digital Zoom:
  • Device supports 1×, 2×, 4×, and 8× digital zoom.
  • Wi-Fi Hotspot:
  • Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
    • 384×288 resolution, 12 μm, high sensitivity detector

      Adaptive AGC, DDE, 3D DNR

      1280 × 960 resolution 0.4-inch LCOS display

      Built-in rechargeable Lithium battery

      More than 7.5 hours continuous running (with Wi-Fi hotspot function off)

      Wi-Fi hotspot

      Type-C interface

      Limited 3-year warranty

    SPECIFICATIONS

    Detector Type Vanadium Oxide Uncooled Focal Plane Arrays
    Resolution 384×288
    Pixel Interval 12 μm
    Refresh Rate 50 Hz
    Response Waveband 8μm to 14μm
    NETD Less than 35 mk (@25°C), F#=1.0
    Detection Range 1180 m
    Lens (Focal Length) 25 mm
    Aperture F1.0
    Field of View 10.5° × 7.9° (H × V)
    Magnification 2.5×
    Digital Zoom 2×, 4×, 8×
    Monitor 1280×960, 0.4 inch, LCOS
    FFC (Flat Field Correction) Auto, Manual, External Correction
    Palettes Black Hot, White Hot, Red Hot, Fusion
    Highest Temperature Spot Tracking Yes
    Wi-Fi Hotspot Yes
    Standby Mode Yes
    Storage Built-in memory module (8 GB)
    Record Video On-board video recording
    Capture Snapshot Yes
    CVBS Output Yes (via USB)
    Multi Language menu Yes
    Battery Type Built-in rechargeable Lithium battery
    Battery Operating Time More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
    Battery Capacity Display Yes
    Power 5 VDC/2 A, 1.5 W
    Interface USB Type-C
    Working Temperature -20°C to 55°C (-4°F to 131°F)
    Protection Level IP67
    Drop Test Height 1.5 m (4.9 feet)
    Dimension 171 × 61 × 57 mm (6.73 × 2.4 × 2.2 in)
    Weight 300 g (0.69 lb)
