PVS7 SKD Kit w/Standard Kit (10130) PVS7 SKD Kit w/Standard Kit (10130)

PART NO.: #7B-000-SKD1
product
thumbnail
€ 1,760.00
Add to cart
Package Includes
    Objective Lens Cap / Daylight Filter | Eyecup | Head Mount Assembly w/3 Brow Pads | Sacrificial Window | Demist Shields | Shoulder Strap | Lens Tissue | Manual | Soft Carrying Case
Downloads

Description and Features

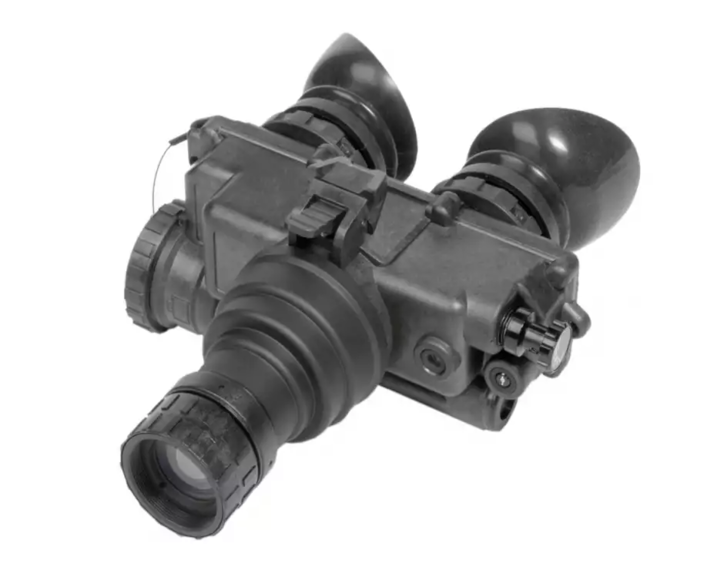

AGM PVS-7 SKD Kit is a set of parts required to assemble PVS7 night vision goggles. The kit does not include Image Intensifier Tube. It is not a functioning system and has no capability to be used during the day or night without further assembly and alignment. AGM PVS-7 SKD Kit (no IIT) is sold under AGM OEM program to authorized manufacturers who are certified in assembly of electrooptical devices. The PVS-7 is a high-tech, durable and versatile Night Vision goggles. The PVS-7 is widely recognized for its unsurpassed dependability and ergonomic design. This U.S. Military-grade night vision goggle system has repeatedly proven its worth in combat, and is the highest-quality AN/PVS-7 B/D system on the market. The PVS-7 can be hand-held or mounted on a headgear. This kit can be equipped with high-performance Gen 2+ or Gen 3 image intensifier tube in green or white phosphor version. The PVS-7 features bright light shut-off circuitry and a built-in IR illuminator.

AGM PVS-7 Body Kit Objective Lens, Housing, 2 Eyepieces, no IIT.
  • Objective Lens Cap / Daylight Filter
  • Eyecup
  • Head Mount Assembly w/3 Brow Pads
  • Sacrificial Window
  • Demist Shields
  • Shoulder Strap
  • Lens Tissue
  • Manual
  • Soft Carrying Case

    SKD kit of assembled parts for PVS-7 night vision goggles

    Image Intensifier Tube is not included

    Compact, rugged design

    Head mountable for hands-free usage

    Ergonomic, simple, easy to operate controls

    Utilizes single BA-5567/U Lithium or two AA Alkaline batteries

    Built-in infrared illuminator

SPECIFICATIONS

Image Intensifier Tube Compatible IIT Type 10130
Magnification 1x
Lens System 27 mm; F/1.2
FOV 40°
Focus Range 0.2 m to Infinity
Diopter Adjustment -6 to +2 diopters
Led Indicators - Low Battery - IR On
Automatic Brightness Control Yes
Infrared Illuminator Yes
Bright Light Cut-Off Yes
Battery Type 2 AA Alkaline or 1 Lithium (BA-5567/ U)
Battery Life (Operating) Up to 60 hours at 20°C
Operating Temperature Range -40°C to +50°C (-40°F to +122°F)
Storage Temperature Range -50°C to +70°C (-58°F to +158°F)
Weight 0.68 kg (1.5 lb)
Overall Dimensions 162 × 152 × 76 mm (6.4 × 6.0 × 3.0 in)
