NVM40 SKD Kit (10160) NVM40 SKD Kit (10160)

PART NO.: #11NV512X3XXXX1
product
thumbnail
thumbnail
thumbnail
Email for quote
Package Includes
    Eyecup | Objective Lens Cap / Daylight Filter | Manual | Soft Carrying Case
Downloads

Description and Features

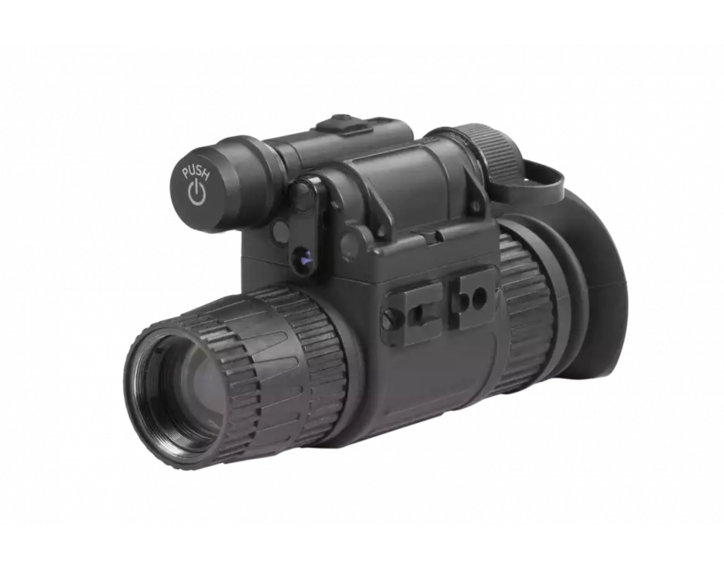

AGM NVM-40 SKD Kit is a set of parts required to assemble NVM40 night vision monocular. The kit does not include Image Intensifier Tube. It is not a functioning system and has no capability to be used during the day or night without further assembly and alignment. AGM NVM-40 SKD Kit (no IIT) is sold under AGM OEM program to authorized manufacturers who are certified in assembly of electrooptical devices. The NVM-40 is the standard by which all compact multiuse monoculars should be judged, now and in the future. The NVM-40 employs optics that are equal or superior to current Military-issue night vision devices, built into a rugged, compact, and ergonomic composite housing. We built this device to exceed user expectations and MIL-SPEC-810 specifications; as a result, the NVM-40 offers unmatched performance even in rain, salt water, temperature extremes, and high-humidity environments.

AGM NVM40-10160 Body Kit Objective Lens, Housing, Eyepiece, (no IIT).
  • Eyecup
  • Objective Lens Cap / Daylight Filter
  • Manual
  • Soft Carrying Case
  • SKD kit of assembled parts for NVM-40 night vision monocular
  • Image Intensifier Tube is not included
  • Head- or helmet-mountable for hands-free usage
  • Bright light cut-off system
  • Ergonomic, simple, easy-to-operate controls
  • Built-in Infrared illuminator and flood lens

SPECIFICATIONS

Magnification 1x
Lens System 27 mm; F/1.3
FOV 40°
Focus Range 0.25 m to Infinity
Eye Relief 25 mm
Diopter Adjustment -6 to +2 diopters
Led Indicators - Low battery - IR On - Excessive light conditions
Automatic Brightness Control Yes
Infrared Illuminator Yes; Two power levels
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Battery Type One CR123A (3V) or AA (1.5 V)
Battery Life (Operating) Up to 40 hours at 20°C
Operating Temperature Range -40°C to +50°C (-40°F to +122°F)
Storage Temperature Range -50°C to +50°C (-58°F to +122°F)
Weight 0.383 kg (0.85 lb)
Overall Dimensions 116 × 48 × 73 mm (4.56 × 1.89 × 2.87 in)
