TigerCam-G2X3 NIGHT VISION IMAGING

PART NO.:
product
thumbnail
thumbnail
thumbnail
Email for quote
Downloads

Description and Features

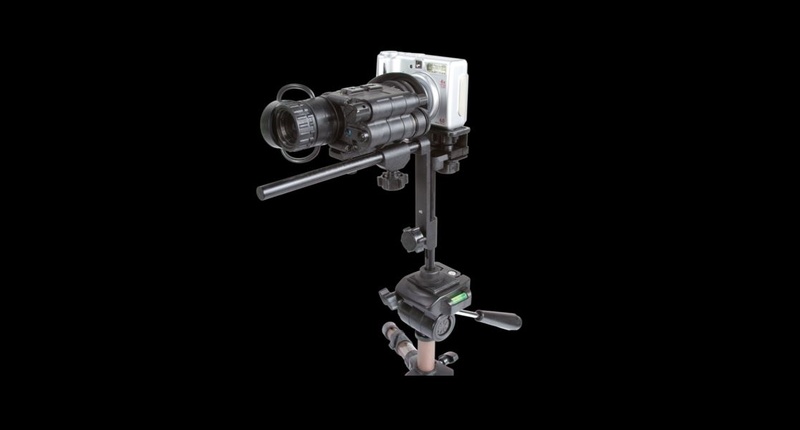

The TigerCam-G2X3 includes 01 Night Vision Monocular modules which is connected to 01 digital camera. Devices are used for the particular task to store images and events clearly and effectively. The device can be used in a combination or independently depending on the certain purpose. Night Vision Monocular module integrates an Sioux850 Long-Range Infrared Illuminator to be able to observe the dark corners even the small details in the night. This is a special technology which not all devices are capable. Digital camera with advanced sensors, many functions and compact design provides sharp images, operational flexibility. The device is placed in a hard, compact, waterproof, ruggedized case, easy to transport and safe in harsh weather condition.
  • Compact, rugged design
  • View, Capture, Record images in the dark
  • Easily removable
  • The parts can be used independently depending on the particular task
  • Ergonomic, simple, easy to operate controls
  • Uncomplicated and easy to use on/off button
  • Limited 3-year warranty
  • The device includes:
  • - Night Vision Monocular Module: 01 ea - Digital Camera : 01 ea - 3X Lens: 01 ea - Sioux850 Long-Range Infrared Illuminator, 1000mW: 01 ea - 3V batteries: 02 units ; 1.5V batteries: 01 unit - Universal Camera Adapter: 01 ea - Battery adapter convert 3V to 1.5V: 01 ea - Water & shock resistance hard case: 01 ea - Use guide: 01 ea

SPECIFICATIONS

Image Intensifier Tube Gen 2+
Magnification 1x;3x (5X option)
Maximum Range of view 500m (3X full moon)
FOV 40° (1X)
Focus Range 0.25 m to Infinity (1X)
Diopter Adjustment -5 to +5 diopters
LED Indicators (in the FOV) - Low Battery - IR On - Excessive Light Conditions
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Infrared Illuminator Yes
Battery Type One CR123A (3V) or AA (1.5 V)
Battery Life (Operating) Up to 40 hours at 20°C
Operating Temperature Range -40°C to +50°C (-40°F to +122°F)
Storage Temperature Range -50°C to +70°C (-58°F to +158°F)
Weight(1X) 0.46 kg (1.0 lb)
Overall Dimensions(1X) 157 × 60 × 75 mm (6.1 × 2.3 × 2.9 in)
Sioux850 Long-Range Infrared Illuminator Power: 1000mW Wave length: 850nm Max distance: 1000m
SPECIFICATIONS OF DIGITAL CAMERA
Sensor CCD
Image Stabilization Yes
Resolution 20 Megapixel
Display LCD
