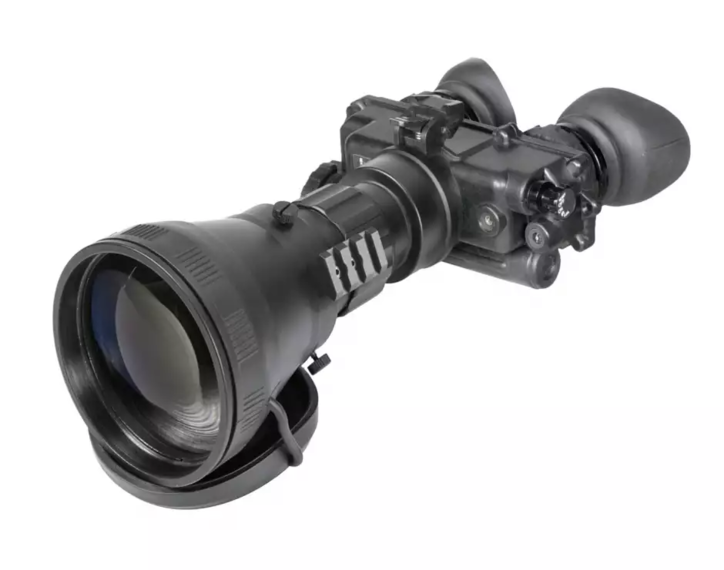

AGM FoxBat-LE6 SKD Kit is a set of parts required to assemble FoxBat-LE6 Night Vision Bi-ocular. The kit does not include Image Intensifier Tube. It is not a functioning system and has no capability to be used during the day or night without further assembly and alignment. AGM FoxBat-LE6 SKD Kit (no IIT) is sold under AGM OEM program to authorized manufacturers who are certified in assembly of electro-optical devices. The AGM FoxBat-LE night vision bi-ocular is the perfect tool for midrange and long-range observation. The FoxBat-LE is compatible with a range of professional high-quality objective lenses to match all users’ requirements.
AGM FoxBat-LE6 Body Kit Objective Lens, Housing, Eyepiece, no IIT.| Image Intensifier Tube | Compatible IIT Type 10130 |
| Magnification | 5.6x |
| Lens System | 145 mm; F/1.8 |
| FOV | 7° |
| Focus Range | 25 m to Infinity |
| Diopter Adjustment | -6 to +2 diopters |
| Led Indicators | - Low battery - IR On - Excessive light conditions |
| Automatic Brightness Control | Yes |
| Infrared Illuminator | Detachable, long-range |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
| Battery Type | 2 AA Alkaline or 1 Lithium (BA-5567/U) |
| Battery Life (Operating) | Up to 40 hours at 20°C |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +50°C (-58°F to +122°F) |
| Weight | 1.02 kg (2.25 lb) |
| Overall Dimensions | 282 × 152 × 96 mm (11.1 × 6.0 × 3.8 in) |
