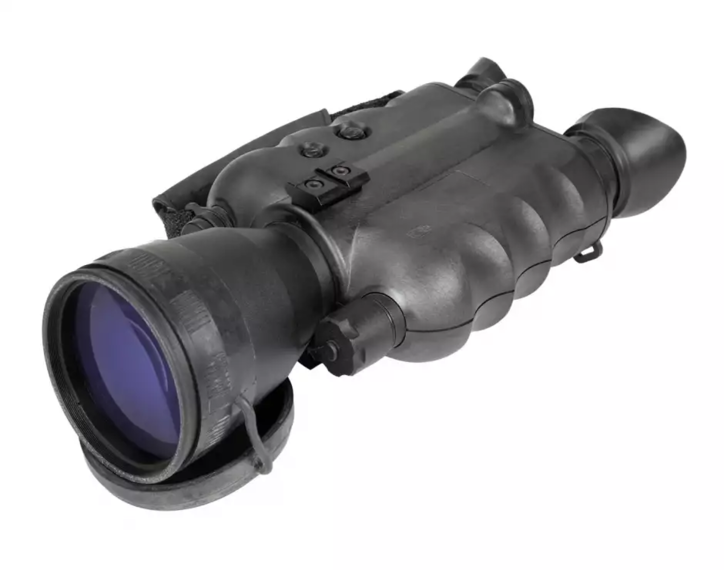

AGM FoxBat-5 SKD Kit is a set of parts required to assemble FoxBat-5 Night Vision Bi-ocular. The kit does not include Image Intensifier Tube. It is not a functioning system and has no capability to be used during the day or night without further assembly and alignment. AGM FoxBat-5 SKD Kit (no IIT) is sold under AGM OEM program to authorized manufacturers who are certified in assembly of electro-optical devices. The AGM FoxBat-5 night vision bi-ocular is the perfect tool for midrange and long-range observation. The FoxBat-5 combines a single high quality image intensifier tube with a image beam splitter and double eyepiece, making it applicable for long viewing sessions. The FoxBat-5 is packed with features, such as digital controls and a proximity sensor for automatic shut off in varying light conditions. This night vision bi-ocular is the ideal choice for security and recreational use.
AGM FoxBat-5 Body Kit Objective Lens, Housing, Eyepiece, no IIT.| Image Intensifier Tube | Gen 2+ G2G |
| Magnification | 5x |
| Lens System | 108 mm; F/1.5 |
| FOV | 9.5° |
| Focus Range | 10 m to infinity |
| Controls | Digital |
| Diopter Adjustment | -5 to +5 diopters |
| Led Indicators | - Low battery - Excessive light conditions |
| Automatic Brightness Control | Yes |
| Infrared Illuminator | Detachable long-range IR illuminator |
| Bright Light Cut-Off | Yes |
| Battery Type | 1 x 1.5V AA type or 1 x 3V CR123A type battery |
| Battery Life (Operating) | 60 hours (3V) / 30 hours (1.5V ) |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +70°C (-58°F to +158°F) |
| Weight | 1.35 kg / 2.9 lb |
| Overall Dimensions | 262 × 140 × 81 mm (10.3 × 5.5 × 3.1 in) |
