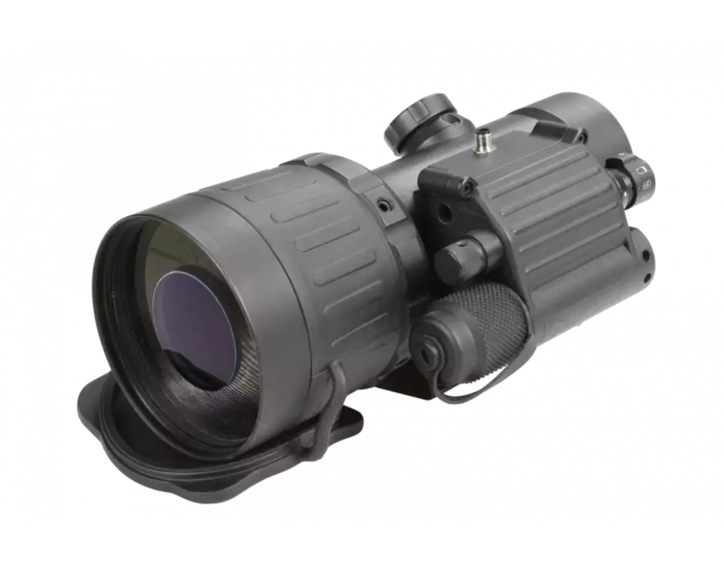

Comanche 40 SKD Kit no MG (10160) Comanche 40 SKD Kit no MG (10160)

PART NO.: #16CM412X3XXXX1
product
thumbnail
€ 2,150.00
Add to cart
Downloads

Description and Features

AGM Comanche-40 SKD Kit is a set of parts required to assemble Comanche-40 Night Vision Clip-On (NVCO). The kit does not include Image Intensifier Tube. It is not a functioning system and has no capability to be used during the day or night without further assembly and alignment. AGM Comanche-40 SKD Kit (no IIT) is sold under AGM OEM program to authorized manufacturers who are certified in assembly of electro-optical devices. The Comanche-40 Night Vision Clip-On system uses the latest advances in night vision clip-on technology. Designed for mid-range nighttime shooting, the Comanche-40 delivers exceptional clarity, reliability, and versatility providing the most significant functionality and features at the lowest possible price. This NVCO can be used with day scopes of up to 12x magnification for optimal performance and is equipped with a quick release mount and remote control.

AGM Comanche-40 Body Kit Objective Lens, Housing, no IIT.
  • Objective Lens Cap
  • Light Suppressor 1
  • Light Suppressor for Day Scope
  • Remote Control
  • Manual
  • Soft Carrying Case
  • SKD kit of assembled parts for Comanche-40 Night Vision Clip-On
  • Image Intensifier Tube is not included
  • Simple, quick conversion of daytime scopes to NVDs
  • Mounts in front of any daytime scope, no re-zeroing required
  • Equipped with a wireless remote control
  • Powered by a single Alkaline 1.5V AA or 3V CR123A Lithium battery
  • Bright-light cut-off system
  • Quick-release mount

SPECIFICATIONS

Image Intensifier Tube Compatible IIT Type 10160
Magnification 1x
Lens System 80 mm; F/1.44
FOV 12°
Focus Range 10 m to infinity
Led Indicators - Low battery - Excessive light conditions
Infrared Illuminator Detachable; Long-Range
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Battery Type One CR123A (3V) or AA (1.5 V)
Battery Life (Operating) Up to 60 hours (3 V) at 20°C
Exit Pupil Diameter 40 mm
Operating Temperature Range -40°C to +50°C (-40°F to +122°F)
Storage Temperature Range -50°C to +50°C (-58°F to +122°F)
Weight 1.04 kg (2.3 lb)
Overall Dimensions 189 × 104 × 90 mm (7.4 × 4.1 × 3.5 in)
