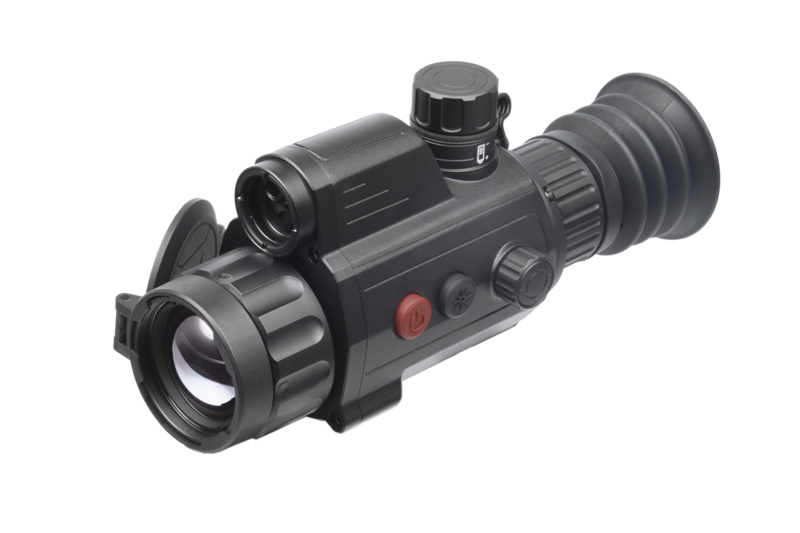

Refurbished AGM Varmint LRF TS35-640 THERMAL WEAPON SIGHT

PART NO.: #3142555305RA31

€ 1,920.00 € 3,000.00

Package Includes

18650 Rechargeable Battery

USB Cable

Battery Charger

Power Adapter

Lens Tissue

User Manual

EU Plug

Downloads

Description and Features

Ideal For

Certified Refurbished Value
Precision Distance Laser Rangefinding
Riflescope & Handheld Dual-Use
Spotting, Stalking and Scouting
Hunters Seeking Enhanced Depth Perception

Refurbished AGM Varmint LRF: Advanced Thermal Imaging Riflescope with Integrated Rangefinder

The Varmint LRF series of thermal riflescopes from AGM utilizes many of the premium features that hunters have come to know and love in the ever-popular Rattler product family, but with one major addition: a 600-meter integrated laser rangefinder. This advanced module helps alleviate a common issue many outdoors enthusiasts experience when hunting with a digital optic — the inherent lack of depth perception caused by viewing terrain through a flat digital monitor. The Varmint LRF pairs that precise LRF functionality with a 12-micron high-sensitivity thermal detector, which works in close conjunction with a high-quality 1024×768 OLED display.

The compact and lightweight design of the Varmint LRF allows smooth dual-use functionality, operating perfectly as a handheld monocular as well. This makes it an outstanding tool for surveying your surroundings before the spotting and stalking process has begun. Part of our multi-functional AGM thermal riflescopes lineup, this model is powered by a single, non-proprietary 18650 rechargeable battery, which provides users with up to 4.5 hours of continuous use in the field.

Please contact us for additional information or comprehensive batch updates: info@agmglobalvision.eu

System Features

640×512, 12µm Thermal Detector

The high-resolution VOx thermal detector captures subtle temperature differences and provides detailed heat signatures in darkness, fog, rain, and other challenging conditions.

35 mm F1.0 Objective Lens

The fast 35 mm germanium objective supports a practical balance of field coverage and long-distance thermal observation at ranges up to approximately 1,750 meters.

Integrated 600 m Laser Rangefinder

The built-in laser rangefinder provides immediate distance measurements up to 600 meters, helping users evaluate target range directly through the riflescope.

1024×768 OLED Display

The high-resolution 0.39-inch OLED display delivers strong contrast, deep black levels, and detailed thermal image presentation across demanding temperatures.

Smooth 50 Hz Thermal Imaging

The fast 50 Hz refresh rate provides fluid image rendering when scanning terrain, panning the riflescope, or following moving wildlife.

2×–16× Magnification Range

Combines 2× base magnification with digital enlargement up to 16×, allowing users to move between wider observation and closer target inspection.

6-Month Warranty & Free EU Shipping

This refurbished AGM Varmint LRF TS35-640 has passed AGM quality control and is covered by a limited 6-month warranty. Orders within the European Union qualify for free delivery.

Selectable Thermal Color Palettes

Multiple thermal palettes allow the image presentation to be adapted to changing terrain, weather conditions, and individual viewing preferences.

Multiple Reticle Types & Colors

Selectable reticle patterns and colors help maintain clear aiming-point visibility across different backgrounds and thermal viewing modes.

Video Recording & Image Capture

Onboard media functions allow thermal video clips and snapshots to be recorded directly through the riflescope during field sessions.

16GB EMMC Storage

Integrated 16GB EMMC memory provides local storage for captured images and recorded thermal video without requiring a separate memory card.

Wi-Fi & AGM Connect Support

The built-in Wi-Fi hotspot supports live viewing, media access, and compatible device functions through the AGM Connect mobile application.

Replaceable 18650 Battery

A removable and rechargeable 18650 battery provides up to approximately 4.5 hours of continuous operation and can be exchanged easily in the field.

Energy-Saving Standby Mode

Standby mode reduces unnecessary power consumption between observation periods while keeping the device ready for quick reactivation.

Waterproof & Shockproof Housing

The weather-sealed, recoil-resistant housing is designed for dependable use on hunting rifles and in demanding outdoor environments.

External Mini-USB Power Support

The integrated mini-USB connection supports compatible external power banks, allowing operating time to be extended during longer field sessions.

SPECIFICATIONS

Detector Type

12 μm VOx Uncooled Focal
Plane Arrays

Resolution

640 × 512

Refresh Rate

50 Hz

Response Waveband

8 μm to 14 μm

NETD

Less than 35 mk (@25°C),
F#=1.0

Lens System

35 mm; F1.0

Field of View (H×V)

12.52° × 10.03°

Magnification

2× – 16×

Digital Zoom

1×, 2×, 4×, 8×

Detection Range (6’ object)

1,750 m/yd

Eye Relief

45 mm

Monitor

1024x768, 0.39 inch, OLED

FFC (Flat Field Correction)

Auto, Manual, External Correction

Palettes

Black Hot, White Hot,
Red Hot, Fusion

Highest Temperature Spot Tracking

Yes

Scene Mode

Jungle, Recognition

Reticle

5 types, 4 colors, on/off

Laser Range Finder

Up to 600 m, ±2 m accurac

Laser Wavelength

905 nm

Laser Safety Class

Class 1

Boresight Adjustment

Digital Controlled

Boresight Increment

0.22 mil / 0.73 MOA

One Scale Interval (Reticle #4)

2 mil / 6.75 MOA

WiFi Hotspot

Yes

Sleep Mode

Yes

Picture In Picture Mode

Yes

Burn Prevention

Yes

Built-in Storage

16 GB EMMC

Video Recording

On-board video recording

Image Capture

Yes

CVBS Output

Yes (via USB)

Battery Type

One 18650 (3.7V) Lithium
Rechargeable Batteries

Battery Operating Time (WiFi off)

Up to 4.5 hours

Battery Capacity Display

Yes

External Power

5 VDC/2 A, USB Type-C

Working Temperature

-20°C to 55°C (-4°F to 131°F)

Protection Level

IP67

Drop Test Height

1.5 m (4.9 ft)

Dimensions (L×W×H)

200 × 66 × 109 mm
(7.8 × 2.6 × 4.3 in)

Weight (w/o batteries)

652 g (1.44 lb)
