Refurbished AGM Rattler TS35-384 THERMAL IMAGING RIFLESCOPE

PART NO.: 3092455005TH31

€ 1,150.00 € 1,709.00

Package Includes

USB Cable

Lens Cloth

Carrying Bag

Mount (Depends on the region of sale)

Lens Cloth

Two Lithium CR123A Batteries

User Manual

Downloads

Description and Features

Ideal For

Certified Refurbished Value
Compact Riflescope & Monocular Dual Use
Short to Medium Range Shooting
All-Weather Hunting Environments
Wildlife Scouting and Detection

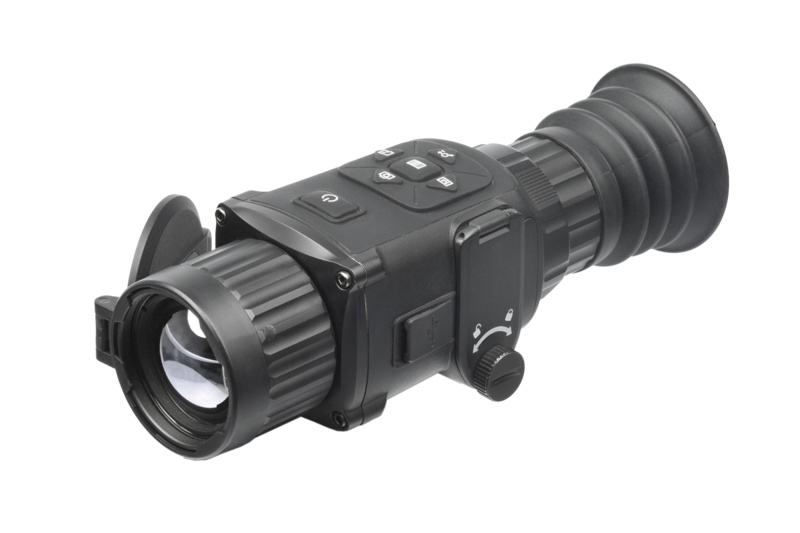

Refurbished AGM Rattler TS-384: Compact Thermal Imaging Riflescope Series

The AGM Rattler TS25-384 and Rattler TS35-384 are compact thermal imaging scopes developed for 24-hour operation under any weather and environmental conditions. This certified refurbished offering features a limited quantity of only 2 pieces. Each unit is in excellent operational condition, has fully passed our extensive Quality Control (QC) inspection, and represents premium performance at a reduced price point.

With two objective lens options available, users can select the perfect unit for their specific field requirements: the 25mm lens is optimized for short-range shooting and scanning, while the 35mm lens model is an outstanding tool for medium-range hunting setups. Featuring a 384×288 thermal detector and a crisp 1024×768 OLED monitor, the Rattler provides clear imagery under harsh conditions like complete darkness, fog, smoke, dust, heavy rain, snow, and thick camouflage brush. Part of our multi-functional AGM thermal riflescopes category, the device is highly versatile and serves perfectly as a dedicated thermal weapon scope or a standalone handheld monocular.

AGM Rattler 35mm: Product Review & Interface View - Part 1

AGM Rattler Series In-Field Testing Demonstration - Part 2

Rattler 35mm: Selectable Color Palettes & Zoom Test (75m) - Part 3

AGM Rattler Optics Menu Controls and Configuration - Part 4

System Features

384×288, 17µm Thermal Detector

The high-sensitivity VOx detector provides detailed thermal imaging at a smooth 50 Hz refresh rate and offers NETD below 35 mK for reliable heat detection in darkness, rain, or fog.

35 mm F1.0 Objective Lens

The fast 35 mm germanium lens provides a 10.0° × 8.0° field of view and supports thermal observation at distances up to approximately 1,235 meters.

1024×768 OLED Display

The high-resolution 0.39-inch OLED display delivers strong contrast, deep black levels, and clear thermal image presentation during extended field observation.

Advanced Digital Image Processing

Adaptive AGC, Digital Detail Enhancement, and 3D Digital Noise Reduction help improve object definition and reduce image noise in difficult weather conditions.

2.14× Base Magnification & 8× Digital Zoom

Combines 2.14× optical magnification with smooth digital zoom up to 8× and Picture-in-Picture mode for closer inspection of distant heat signatures.

Stadiametric Distance Measurement

The built-in stadiametric rangefinder estimates distance using the approximate height of a known target and its apparent size on the display.

6-Month Warranty & Free EU Shipping

This refurbished AGM Rattler TS35-384 has passed AGM quality control and is covered by a limited 6-month warranty. Orders within the European Union qualify for free delivery.

Video Recording & Image Capture

Onboard media functions allow thermal video clips and snapshots to be recorded directly through the device during observation or hunting sessions.

16GB EMMC Storage

Integrated 16GB EMMC memory provides local storage for captured images and recorded thermal video files without requiring a separate memory card.

Four Thermal Color Palettes

White Hot, Black Hot, Red Hot, and Fusion palettes help users adapt image presentation to different terrain, weather, and viewing preferences.

Wi-Fi Data Transmission

The built-in Wi-Fi hotspot supports connection to a compatible smartphone or tablet for live viewing and convenient access to recorded media.

Selectable Reticles & Colors

Five reticle styles and three selectable reticle colors help users adapt the aiming display to different backgrounds and field conditions.

Scope & Handheld Monocular Modes

The dual-use design allows the device to operate as a rifle-mounted thermal scope or as a handheld thermal monocular for observation.

IP67 Waterproof & Recoil-Resistant Housing

The rugged IP67-rated enclosure protects the device from dust and water and is engineered to withstand recoil levels up to 750 g/ms.

Dual CR123A Battery System

Two replaceable CR123A batteries provide up to approximately 4.5 hours of continuous operation under suitable conditions.

External USB Power Support

A compatible 5V USB power source or portable power bank can extend operating time during longer observation and field sessions.

SPECIFICATIONS

Resolution

384x288

Detector

17μm, Uncooled, 50Hz Vanadium Oxide Uncooled FPA, NETD less than 35 mk (@25°C), Response Waveband - 8 μm to 14 μm

Lens System

35 mm; F/1.0

Optical Magnification

2.14 x

Field of View

10.0° x 8.0°

Digital Zoom

smooth zoom up to 8x and PIP (picture in picture mode)

Observation Distance

Max. 1235 m

Diopter Adjustement

-5 to +3 dpt

Eye Relief

45 mm

Display

0.39-inch, OLED, 1024 × 768

Crosshair

Yes

Hotspot and WiFi

Yes

Distance Measurement

Yes (Stadiametric range finder)

Palettes

WHITE HOT, BLACK HOT , FUSION (the hot part is white-colored. From high temperature
to low temperature, the image is colored in from white,
yellow, red, pink to purple)
RED HOT (the hot part is red-colored in view. The higher the
temperature is, the redder the color is)
USB Cable, Lens Cloth, Manual

Hot tracking

Yes, enable/disable hot spot mark
(marking the spot of highest
temperature)

Reticles

5 types, 3 colors, on/off

Language of the menu

17 languages (English, Russian, German, Czech,
French, Spanish, Danish, Norwegian, Swedish, Finnish, Hungarian, Italian,
Polish, Portuguese, Romanian, Slovak, Spanish)

Scene Mode

2 modes

Recognition mode improves an image so that the object edge is more distinct. Jungle mode is more suitable for hunting environment because of the highlight function of small objects.

Standby mode

Yes

Video Recording

Yes

Picture Snapshot

Yes

DPC (Dead pixel correction)

Yes

Uniformity Correction

Auto, Manual, External Correction

Storage

Built-in EMMC (16 GB)

Battery Type

Two CR123

Battery Life (Operating, 20°C)

Up to 4.5 hr

External Power Supply

5V USB

Operating Temperature Range

-20°C to +55°C (-4°F to +131°F)

Degree of Protection

IP67

Shock and Vibration

750 g/ms

Weight

511 g (1.13 lb)

Overall Dimensions

226 × 62 × 82 mm (8.9 × 2.4 × 3.2 in)
