Refurbished AGM Rattler TS25-256 THERMAL WEAPON SIGHT

PART NO.: #3143855004RA51

€ 1,234.00 € 1,637.00

Package Includes

Downloads

Description and Features

limited quantity 1 pcs

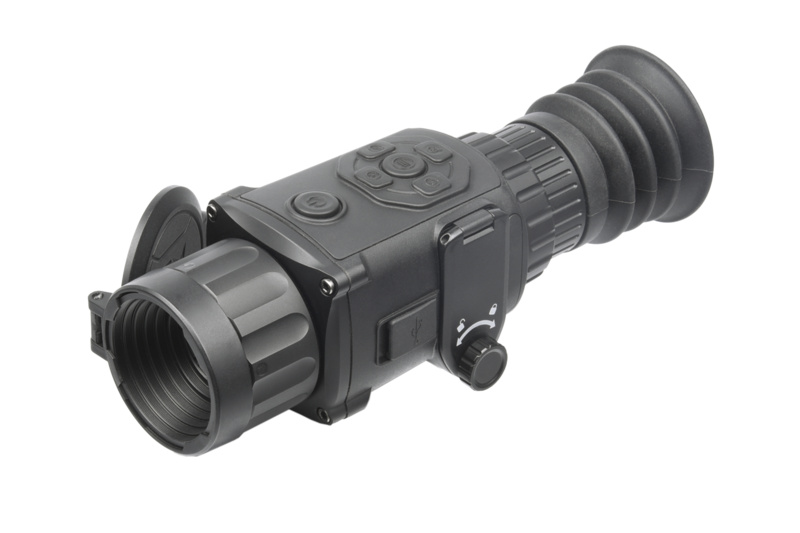

The Rattler TS19-256 and Rattler TS25-256 thermal imaging scopes are the perfect addition to any hunter’s arsenal. Equipped with a 19mm or 25mm Germanium lens and a 256x192 resolution thermal sensor, these units have 2.5X or 3.5X magnification, and a detection range of 950 or 1250 meters, respectively. This base magnification, combined with a wide field of view, makes these scopes a truly versatile optic. The Rattler series of thermal scopes were specifically designed to be compact and lightweight, as this not only ensures its small footprint can be used on a multitude of shooting platforms, but also gives the series secondary use as a thermal monocular as well. This units also come packed with all the features that many Rattler users have come to expect, which include: built-in recording and picture capture capabilities, Wi-Fi hotspot, 8X digital zoom, Picture-in-picture, AGM Connect app compatibility for storing and sharing images and videos, one-shot digital zeroing process, 4.5 hours of battery life on (2) CR123 batteries, external power capability through the unit’s USB-C plug and a high-quality mount.

Please contact us for additional information info@agmglobalvision.eu

12μm high-sensitivity detector
256×192 thermal resolution
Image processing technology: Adaptive AGC, DDE, 3D DNR
1024×768 resolution 0.39-inch OLED display
1x, 2x, 4x and 8x digital zoom
Video recording and snapshot
16 GB built-in EMMC
Supports distance measurement
Adjustable color palettes
Wi-Fi data transmission
Waterproof, shockproof
Up to 4.5 hours continuous working
External power supply capability
6 months warranty
free shipping within EU

SPECIFICATIONS

Resolution

256 × 192

Detector

12μm, Uncooled, 25 Hz

Lens System

25 mm; F/1.0

Optical Magnification

3.5× - 28×

Field of View

7.0° × 5.3°

Digital Zoom

1×, 2×, 4×, 8×

Observation Distance

Max. 1250 m

Diopter Adjustement

-5 to +3 dpt

Eye Relief

45 mm

Display

0.39-inch, OLED, 1024×768, 50 Hz

Reticle

5 types, 3 colors, on/off

Boresight Adjustment

Digital Controlled

Boresight Increment

0.17 mil / 0.58 MOA

Distance Measurement

Yes (Stadiametric Rangefinder)

Palettes

Black Hot, White Hot, Red Hot, Fusion

Scene Mode

Jungle, Recognition

Picture In Picture Mode (PIP)

Yes

Hotspot

Yes

Standby Mode

Yes

Video Recording

Yes

Picture Snapshot

Yes

CVBS Output

Yes (via USB)

Defective Pixels Correction (DPC)

Yes

Uniformity Correction

Auto, Manual, External Correction

Storage

Built-in EMMC (16 GB)

Battery Type

Two CR123 (3V) Lithium
or two RCR123 (up to 4.2V) Rechargeable Batteries

Battery Life (Operating, 20°C)

Up to 4.5 hr

External Power Supply

5 VDC/2 A, USB Type-C interface

Operating Temperature Range

-20°C to +55°C (-4°F to +131°F)

Degree of Protection

IP67

Drop Test Height

1.5m (4.9 feet)

Weight (w/o battery)

0.53 kg ( 1.16 lb)

Overall Dimensions (w/o mount)

187 × 63 × 80 mm (7.4 × 2.5 × 3.1 in)

optional equipment

AGM Solar Power Bank 30000 Mah

PART NO.: 6628XPB31

Please note that the shipping cost within the European Union may reach €15–30, depending on your country.

The AGM Solar Power Bank 30000 mAh is a high-capacity external power source designed to help keep compatible electronics charged during outdoor use and travel.

Read full description

With a rugged shockproof body, rain-resistant design, integrated cables, wireless charging support, and a solar panel for backup charging, this power bank is useful for long outdoor sessions where access to mains power may be limited.

Key Features & Benefits:

Capacity: 30,000 mAh.
Universal Charging: Supports Micro-USB, USB-C, Lightning, and Qi wireless charging.
Solar Backup: Integrated solar panel provides backup charging from daylight.
Outdoor Build: Shockproof and rain-resistant construction for field use.

Go to Accessory Product Page

€ 49.00

AGM-2111 ADM Double Lever QR Mount for Rattler TS Family

PART NO.: 6306LMR1

The AGM-2111 ADM Double Lever QR Mount is a quick-release mounting solution designed for compatible AGM Rattler TS thermal imaging riflescopes.

Read full description

Developed in cooperation with American Defense Manufacturing, this ADM double-lever quick-release mount provides a stable and secure attachment solution for compatible AGM thermal optics. Its height and length are designed to support practical positioning on Weaver or Picatinny rail systems.

The dual-lever design helps distribute clamping force and provides additional mounting stability, while the tool-free adjustment system allows the mount tension to be set without additional tools. The aluminum alloy construction helps keep the mount rigid, durable, and suitable for repeated outdoor use.

Key Features & Specifications:

Compatibility: Designed for compatible AGM Rattler TS thermal imaging riflescopes.
Mounting Interface: Weaver / Picatinny rail.
Quick-Release Design: ADM double-lever quick-release system for secure installation and removal.
Tool-Free Adjustment: Mount tension can be adjusted without additional tools.
Construction: Aluminum alloy.
Weight: 140 g / 5 oz.
Dimensions: 145 × 50 × 25 mm / 5.7 × 2.0 × 1.0 in.

Go to Accessory Product Page

€ 226.00

AGM-2112 ADM Short Single Lever QR Mount for Rattler TS family

PART NO.: 6306SMR1

The AGM-2112 ADM Short Single Lever QR Mount is a compact quick-release mounting solution designed for compatible AGM Rattler TS thermal imaging riflescopes.

Read full description

Developed in cooperation with American Defense Manufacturing, this short ADM single-lever quick-release mount provides a stable and convenient attachment solution for compatible AGM thermal optics. Its compact length makes it a practical option for setups where a shorter mounting footprint is preferred.

The tool-free adjustment system allows the mount tension to be set without additional tools, making installation, removal, and field adjustment more convenient. The aluminum alloy construction helps keep the mount lightweight, rigid, and suitable for repeated outdoor use.

Key Features & Specifications:

Compatibility: Designed for compatible AGM Rattler TS thermal imaging riflescopes.
Mounting Interface: Weaver / Picatinny rail.
Mount Type: Short ADM single-lever quick-release mount.
Tool-Free Adjustment: Mount tension can be adjusted without additional tools.
Construction: Aluminum alloy.
Weight: 86 g / 3.0 oz.
Dimensions: 95 × 50 × 25 mm / 3.7 × 2.0 × 1.0 in.

Go to Accessory Product Page

€ 196.00

AGM-2115 ADM Single Lever QR Mount for Rattler TS family

PART NO.: 63061151

The AGM-2115 ADM Single Lever QR Mount is a quick-release mounting solution designed for compatible AGM Rattler TS thermal imaging riflescopes.

Read full description

Developed in cooperation with American Defense Manufacturing, this ADM single-lever quick-release mount provides a stable and convenient attachment solution for compatible AGM thermal optics. Its height and extended cantilever format help support practical positioning on Weaver or Picatinny rail systems.

Key Features & Specifications:

Compatibility: Designed for compatible AGM Rattler TS thermal imaging riflescopes.
Mounting Interface: Weaver / Picatinny rail.
Quick-Release Design: Single-lever ADM quick-release system for fast installation and removal.
Tool-Free Adjustment: Mount tension can be adjusted without additional tools.
Construction: Aluminum alloy.
Weight: 98 g / 3.5 oz.
Dimensions: 121 × 50 × 26 mm / 4.7 × 2.0 × 1.0 in.

€ 196.00
