Refurbished AGM Fuzion LRF TM25-384 THERMAL MONOCULAR

PART NO.: #3142451304FM21
product
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
€ 1,100.00 € 1,220.00
Package Includes
    USB Cable
    User Manual
    Lens Cloth
    2x 18650 Rechargeable Batteries
    EU Plug
    Rubber eyepiece
    Battery Charger
    AGM Sioux850 Long-Range Infrared Illuminator

Description and Features

Ideal For

  • Certified Refurbished Value
  • Bi-Spectrum Image Fusion
  • Precise Laser Rangefinding
  • All-Weather Wildlife Observation
  • Search and Rescue Support

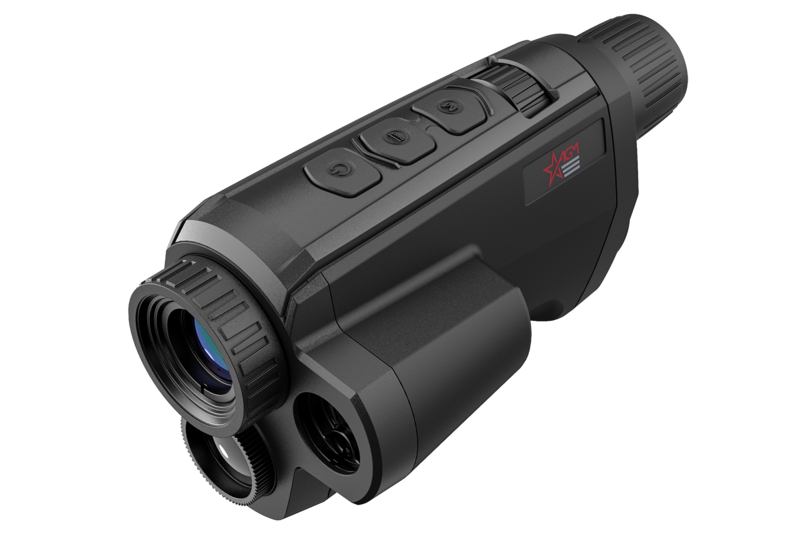

Refurbished AGM Fuzion LRF: Thermal & Optical Bi-Spectrum Monocular

The AGM Fuzion LRF handheld thermal and optical bi-spectrum monocular is equipped with a 12µm high-sensitivity thermal detector, an ultra-low light optical sensor, a 1024×768 OLED display, and an eyepiece with a large field of view. This certified refurbished offer features a limited quantity of only 2 pieces, with minimal cosmetic wear (used approx. 10%), fully QC passed and tested for peak performance.

The device can quickly detect targets even under extreme environmental conditions such as smoke, fog, rain, and snow. It can be widely applied to civilian scenarios including outdoor exploration, nature study, and search and rescue operations. Due to its waterproof capability, the device performs reliably in severe weather conditions and challenging outdoor environments. Part of our advanced AGM thermal monoculars portfolio, the Fuzion LRF features a user-friendly interface and ergonomic operating controls that make field application incredibly simple.

Top 4 Advantages of the Fuzion LRF
  • Three Image Viewing Modes: Seamlessly switch between pure thermal, visible light channels, or a combined high-tech bi-spectrum fusion view depending on your current environment.
  • Integrated Laser Rangefinder: Features a built-in eye-safe LRF module for instantaneous and highly accurate measurement of target distance in complete darkness.
  • Reliable Power Solution: Powered by a standard removable, rechargeable 18650 Lithium battery providing up to 5 hours of continuous operating time, with external power supply support over Type-C.
  • Rugged Housing & Secure Purchase: Built with a weather-resistant chassis and backed by an official 6-month warranty alongside dedicated support at info@agmglobalvision.eu.

    System Features

    Bi-Spectrum Image Fusion

    The imaging system combines thermal information with low-light optical detail to improve object highlighting, environmental awareness, and target recognition.

    384×288, 12μm Thermal Detector

    The high-sensitivity VOx detector with NETD below 35 mK captures clear heat differences through darkness, fog, rain, and snow.

    Integrated 600m Laser Rangefinder

    The eye-safe Class 1 laser rangefinder provides direct distance measurements up to 600 meters with a stated accuracy of approximately ±1 meter.

    1024×768 OLED Display

    The 0.39-inch high-resolution OLED display provides deep black levels, strong contrast, and detailed image rendering during extended observation.

    1960×1200 Low-Light Optical Channel

    The progressive-scan CMOS optical sensor provides additional visible scene detail during daylight, dawn, dusk, and other low-light conditions.

    Smooth 50 Hz Thermal Imaging

    A fast 50 Hz thermal refresh rate delivers fluid panning and responsive observation when following moving subjects.

    Certified Refurbished, 6-Month Warranty & Free EU Shipping

    This quality-controlled refurbished unit is offered with the 6-month limited warranty and free EU delivery stated on its AGM product page.

    Thermal, Optical & Fusion Channels

    Users can switch between a pure thermal image, the visible-light optical channel, or a combined fusion view to suit current conditions.

    2.5×–20× Magnification

    The 25 mm F1.0 thermal lens and selectable 1×, 2×, 4×, and 8× digital zoom levels support scanning and detailed long-distance observation.

    Video Recording & Image Capture

    Onboard media functions allow thermal and fused video recordings and image snapshots to be saved directly on the device.

    16GB EMMC Internal Storage

    The integrated 16GB memory module provides local capacity for recorded videos and image snapshots without requiring a memory card.

    Wi-Fi Hotspot & App Workflow

    Wireless connectivity supports live viewing, media access, and compatible device controls through the AGM mobile application.

    Energy-Saving Standby Mode

    Standby mode temporarily reduces display activity to conserve power while keeping the monocular ready for quick reactivation.

    Replaceable 18650 Battery

    One removable and rechargeable 18650 battery provides up to five hours of operation with Wi-Fi and CVBS output switched off.

    USB Type-C External Power Support

    The 5 VDC/2 A USB Type-C connection supports compatible external power supplies and portable power banks for extended operation.

    IP67 Waterproof Housing

    The sealed IP67 housing provides dependable protection against rain, dust, and demanding outdoor weather conditions.

SPECIFICATIONS

Detector Type
12 μm VOx Uncooled Focal Plane Arrays
Resolution
384 × 288
Refresh Rate
50 Hz
Response Waveband
8 μm to 14 μm
Thermal Lens Focal Length
25 mm
Aperture
F1.0
Field of View (HxV)
10.5° × 7.9°
Diopter Adjustement
-5 to +3 dpt
Magnification
2.5x – 20x
Digital Zoom
1x, 2x, 4x, 8x
Observation Distance
1,181 m
Monitor
1024x768, 0.39 inch, OLED, 50Hz
FFC (Flat Field Correction)
Auto, Manual, External Correction
Palettes
Black Hot, White Hot, Red Hot,
Fusion, Visible, Image Fusion
Highest Temperature Spot Tracking
Yes
Scene Mode
Jungle, Recognition
Optical Image Sensor
1/2” Progressive Scan CMOS,
1960×1200@25fps
Optical Sensor Wavelength
400-1000 nm
Optical Module Lens Focal Length
22 mm
Distance Measurement
Yes (Laser Rangefinder:
up to 600 m, ±1 m accuracy)
Laser Wavelength
905 nm
Laser Safety Class
Class 1
Hotspot
Yes
Sleep Mode
Yes
Built-in Storage
16 GB EMMC
Record Video
On-board video recording
Capture Snapshot
Yes
CVBS Output
Yes (via USB)
Battery Type
One 18650 rechargeable battery
(removable)
Battery Operating Time
Up to 5 hours continuous running
(@25°C, WiFi and CVBS off)
Up to 3 hours continuous running
(@25°C, WiFi and CVBS on)
Battery Capacity Display
Yes
Power
5 VDC/2 A, USB Type-C interface
Supports external power supply
Working Temperature
-20°C to 55°C (-4°F to 131°F)
Protection Level
IP67 (Waterproof)
Dimension
158 × 61 × 57 mm (3.2 × 2.4 × 2.2 in)
Weight (w/o batteries)
510 g (1.12 Ib)
