Refurbished AGM ASP-Micro TM-384 THERMAL IMAGING MONOCULAR

PART NO.: 3093451001AM30

€ 490.00 € 780.00

Other Models ARE Also Available:

Package Includes

USB Cable

Lanyard

Protective Bag

User Manual

Lens Tissue

EU Plug

Downloads

Description and Features

Ideal For

Refurbished & Certified Gear Seekers
Compact Thermal Observation
Night Hiking and Traveling
Wildlife Tracking and Nature Study
Hunters Looking for Premium Value

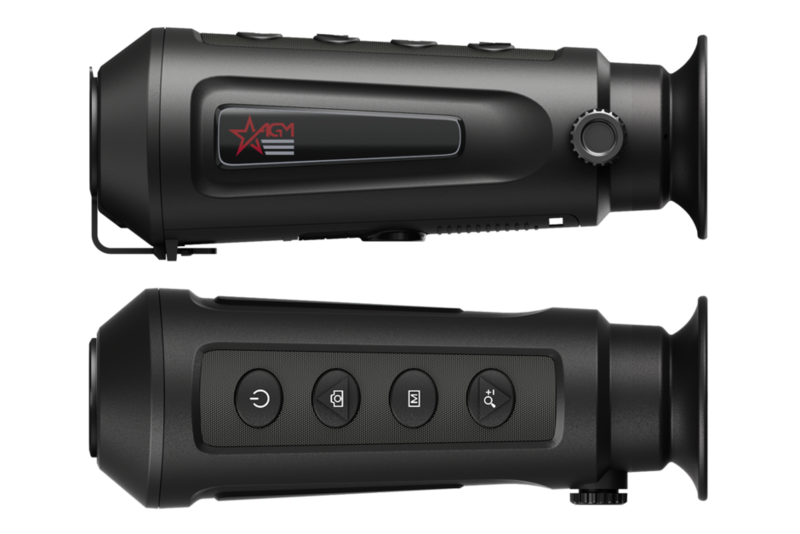

Refurbished AGM ASP-Micro TM-384 Handheld Observational Thermal Monocular

The ASP-Micro TM-384 is a certified refurbished handheld observational thermal monocular, offering high-tier infrared detection in a compact package. This specific batch features a limited quantity of only 6 pieces, having been gently used for 2-3 months. Each unit is in like-NEW condition and has fully passed our rigorous Quality Control (QC) inspection.

Equipped with a 384×288 infrared detector and a 720×540 LCOS display, the Asp-Micro supports observation, highest-temperature target tracking, distance measurement, and Wi-Fi hotspot capabilities. The high-sensitivity built-in thermal sensor provides clear visibility even in total darkness. Part of our trusted lineup of AGM thermal imaging equipment, this monocular is highly versatile and optimized for civilian scenarios such as outdoor exploration, search and rescue support, night hiking, travel, nature observation, and hunting.

AGM ASP Micro Overview. Read more reviews and testing notes at TheFirearmBlog.

System Features

384×288 Thermal Resolution & 50 Hz Imaging

The high-sensitivity VOx thermal detector delivers clear heat signatures, detailed object outlines, and smooth imaging in complete darkness.

15 mm F1.0 Wide-View Lens

The fast 15 mm objective provides a wide 16.51° × 12.42° field of view for scanning terrain and locating nearby thermal targets.

720×540 LCOS Display

The compact 0.2-inch LCOS display provides strong contrast, clear thermal rendering, and comfortable viewing during extended observation.

Adaptive AGC, DDE & 3D DNR

Automatic Gain Control, Digital Detail Enhancement, and 3D noise reduction improve image clarity and target separation in difficult conditions.

More Than 7 Hours of Operation

The built-in rechargeable lithium battery provides more than seven hours of continuous operation when the Wi-Fi hotspot is switched off.

Stadiametric Distance Estimation

The device estimates distance after the user marks the top and bottom of a target and enters its approximate height.

Certified Refurbished, 6-Month Warranty & Free EU Shipping

This quality-controlled refurbished unit is covered by the 6-month limited warranty stated on its AGM product page, with free delivery offered within the European Union.

Wi-Fi Hotspot & App Control

Wireless connectivity supports live mobile viewing, media access, image capture, video recording, and device configuration through a compatible application.

Video Recording & Image Capture

The onboard media system records thermal videos and captures image snapshots directly on the monocular.

8GB Built-in Memory

The integrated 8GB storage module provides local capacity for recorded thermal videos and image snapshots without requiring a memory card.

1×, 2×, 4× & 8× Digital Zoom

Selectable digital zoom levels support wide-area scanning and closer inspection of distant heat signatures.

Highest-Temperature Tracking

The hot-spot tracking function automatically detects and marks the highest-temperature area within the current field of view.

Selectable Thermal Palettes

Black Hot, White Hot, Red Hot, and Fusion modes help optimize thermal contrast for different terrain and viewing preferences.

USB Type-C Charging & External Power

The 5 VDC/2 A USB Type-C interface supports convenient charging, data access, and operation from compatible portable power banks.

SPECIFICATIONS

Detector Type

Vanadium Oxide Uncooled Focal Plane Arrays

Resolution

384×288

Refresh Rate

50 Hz

Recognition Range

(Vehicles: 1.4×4.0m) - 338m
(Humans: 1.8×0.5m) - 110m

Detection Range

(Vehicles: 1.4×4.0m) - 1353m
(Humans: 1.8×0.5m) - 441m

Identification Range

(Vehicles: 1.4×4.0m) - 169m
(Humans: 1.8×0.5m) - 55m

Response Waveband

8μm to 14μm

Diopter Adjustement

-3 to +1 dpt

NETD

less than 35 mk (@25°C), F#=1.0

Lens (Focal Length)

15 mm

Aperture

F1.0

Field of View

16.51° × 12.42° (H × V)

Magnification

1×

Digital Zoom

1×, 2×, 4×, 8x

Monitor

720×540, 0.2 inch, LCOS

FFC (Flat Field Correction)

Auto, Manual, External Correction

Palettes

Black Hot, White Hot, Red Hot, Fusion

Highest Temperature Spot Tracking

Yes

Wi-Fi Hotspot

Yes

Standby Mode

Yes

Storage

Built-in memory module (8 GB)

Record Video

On-board video recording

Capture Snapshot

Yes

Battery Type

Built-in rechargeable Lithium battery

Battery Operating Time

More than 7 hours continuous running
(with Wi-Fi hotspot function off)

Battery Capacity Display

Yes

Power

5 VDC/2 A, 1.5 W, USB Type-C Interface

Working Temperature

-20°C to 55°C (-4°F to 131°F)

Protection Level

IP67

Drop Test Height

1.5 m (4.9 feet)

Dimension

161 × 61 × 57 mm (6.3 × 2.4 × 2.2 in)

Weight

270 g (0.6 lb)

optional equipment

AGM Solar Power Bank 30000 Mah

PART NO.: 6628XPB31

Please note that the shipping cost within the European Union may reach €15–30, depending on your country.

The AGM Solar Power Bank 30000 mAh is a high-capacity external power source designed to help keep compatible electronics charged during outdoor use and travel.

Read full description

With a rugged shockproof body, rain-resistant design, integrated cables, wireless charging support, and a solar panel for backup charging, this power bank is useful for long outdoor sessions where access to mains power may be limited.

Key Features & Benefits:

Capacity: 30,000 mAh.
Universal Charging: Supports Micro-USB, USB-C, Lightning, and Qi wireless charging.
Solar Backup: Integrated solar panel provides backup charging from daylight.
Outdoor Build: Shockproof and rain-resistant construction for field use.

Go to Accessory Product Page

€ 49.00
