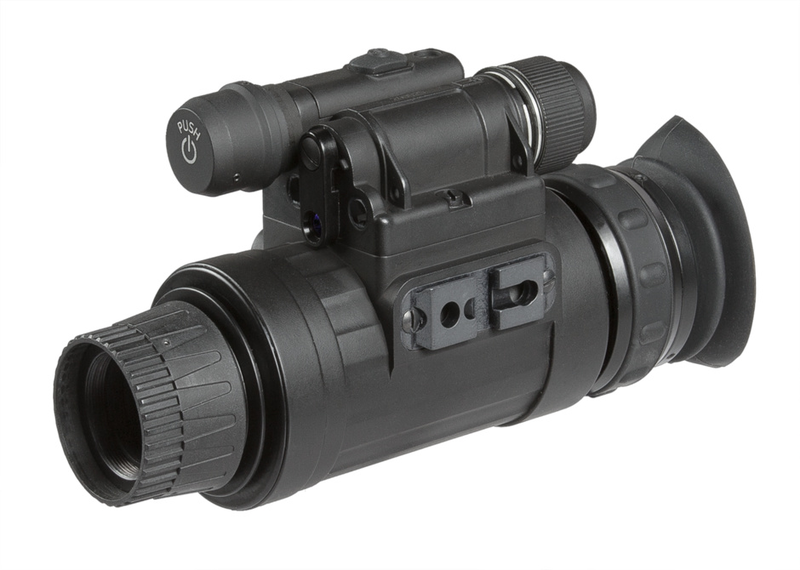

AGM Wolf-14 is a high-tech, durable and versatile Night Vision monocular that delivers great performance at a reasonable price. The Wolf-14 NVM features bright light shut-off circuitry and a built-in spot/flood IR illuminator. The Wolf-14 can be equipped with high-performance Gen 2 image intensifier tubes in green or white phosphor. Packed with high-tech features, the Wolf-14 NVM is equally suited for law enforcement and security professionals, as it is for hunting and recreation. The Wolf-14 NVM can be hand-held or mounted on a helmet or headgear. A specialized mount enables use with a rifle and the ability to mount in front of a camcorder or camera makes it ideal for night photography. With a variety of compatible lenses, long-range nighttime viewing is available in seconds.
|
| Image Intensifier Tube | Gen 2+ "Level 3" International |
| Cosmetic level of IIT | NL3i budget |
| Resolution | 45-51 lp/mm |
| Visible Spots | few small |
| NL3i | is a budget option, admits some insignificant blemishes in the field of view and lower resolution, but it does not influence the performance. |
| Magnification | 1x (3x and 5x optional) |
| Lens System | 27 mm; F/1.2 |
| FOV | 40° |
| Focus Range | 0.25 m to Infinity |
| Eye Relief | 21.5 mm |
| Diopter Adjustment | -5 to +5 dpt |
| Led Indicators | Low battery; IR On |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
| Infrared Illuminator | Yes |
| Battery Type | One CR123A (3V) or AA (1.5 V) |
| Battery Life (Operating) | Up to 40 hours at 20°C |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +50°C (-58°F to +122°F) |
| Weight | 0.46 kg (1.0 lbs) |
| Overall Dimensions | 157 × 60 × 75 mm (6.1 × 2.3 × 2.9 in) |
| Package Includes | Night Vision Monocular, Lens Tissue, Soft Carrying Case, Battery Adapter |
AGM Helmet Mount W-MP for MICH and PASGT Helmets
PART NO.: 6103HMW1
This helmet mount assembly allows mounting of a night vision device onto MICH and PASGT type helmet for hands free operations.
AGM Afocal Magnifier Lens Assembly, 3X
PART NO.: 61023XA1
High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.
AGM Cap Goggle Kit W
PART NO.: 6104GKW1
AGM Cap Goggle Kit allows mounting of night vision device onto cap contruction for hands-free use.
AGM Sioux940 Long-Range Infrared Illuminator comes included with Rechargeable Battery and Charger
PART NO.: 501SIOUX940IR1
AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.
Swing arm#172
PART NO.: ANHM000172
Swing arm#172 for NVM40/50 Wolf 14 for dovetail type headsets and helmet mounts (Rhino Style)
AGM Afocal Magnifier Lens Assembly, 5X
PART NO.: 61025XA1
High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.
AGM Helmet Mount W-S (for Shroud)
PART NO.: 6103HMS1
AGM Helmet Mount W-S (Shroud) is a helmet mount assembly that allows mounting of a night vision device onto helmet for hands free operations. The helmet mount has a flip-up mechanism.
AGM Demist Shield W14/7
PART NO.: 6101DSW1
The demist shield prevents condensation on the optics during long use and rapid temperature changes.
AGM Sacrificial Window W14/7
PART NO.: 6101SSW1
The sacrifical window protects your night vision optics from dust, dirt and bad weather. It is quite useful in high winds or storm conditions. This sacrificial window can be discharged or replaced and your optics remains untouchable and in good condition.
AGM Quick-Release Weapon Mount
PART NO.: 6107QRM1
Ideal for a quick scope change when the conditions call for it.
Hard Case
PART NO.: 6610HCS1
Protective case, made of solid, robust material and designed special for safe storage and transportation.
AGM Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger
PART NO.: 501SIOUX850IR1
AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.
