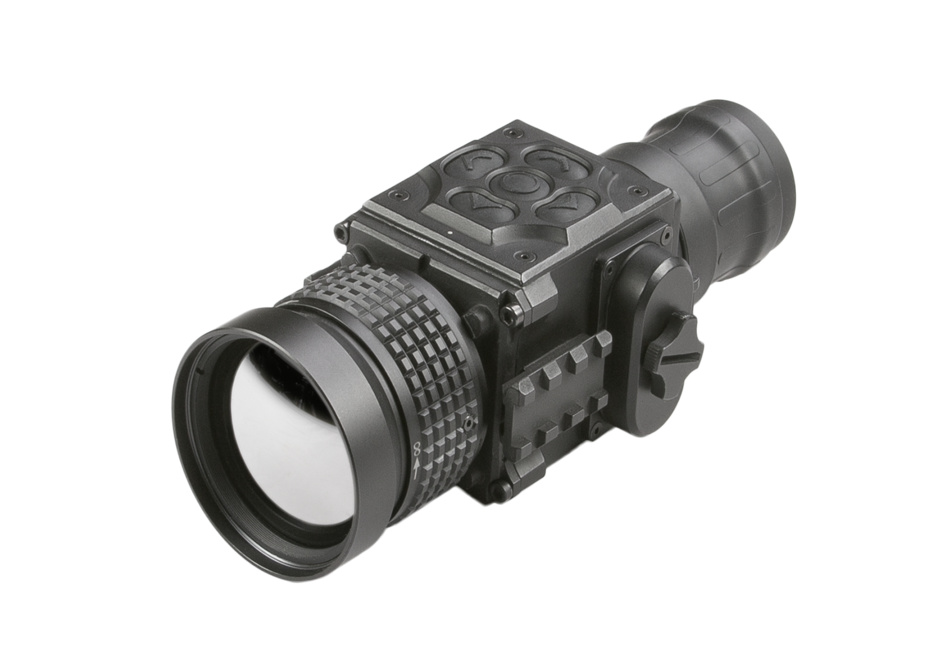

AGM VICTRIX TC50-384 THERMAL IMAGING CLIP-ON

PART NO.: 3083456006VI51
product
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
€ 2,100.00 € 2,690.00
Add to cart
Other Models ARE Also Available:
Package Includes
    Packing Box | Soft Carrying Case | Mount (Depends on the region of sale) | Light-Suppressors | Video Cable | Remote Control | Lens Tissue | Two Lithium CR123A batteries | User Manual

Description and Features

The AGM Victrix is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special skills. The Victrix can be easily attached on up to 8x magnification scopes for medium range use. Powered with two CR123 batteries the unit provides up to 5 hours of continuous work. An optional external battery pack (5V) with high-capacity is capable of increasing the total operation time to up to 44 hours. The Victrix can be also connected to an optional video recorder for shooting real time video or external Wi-Fi module for conjunction with smartphones.



  • Quick conversion of daytime optics into thermal imaging scope
  • Mounts in front of any daytime scope, no re-zeroing is required
  • Electronic accuracy correction
  • Lightweight and compact design
  • Superior clarity, versatility and reliability
  • Waterproof & shockproof
  • Easy to operate control panel
  • High resolution OLED display
  • Picture in Picture mode with 2x digital zoom
  • Automatic or manual (silent) calibration
  • Stadiametric rangefinder
  • Powered by two standard CR123A batteries
  • External power supply via micro-USB
  • Optional external Wi-Fi module and video recorder
  • Integral MIL-STD-1913 rail on unit for optional accessories
  • 3-Year Warranty

SPECIFICATIONS

Detector type 17μm Uncooled Microbolometer based on French ULIS/Lynred ASi detector
Resolution 384x288
Refresh Rate 50 Hz
Lens System 50 mm; F/1.0
Magnification
Field of View (H × V) 7.5° x 5.6°
Digital Zoom 1×, 2×, 4×, PIP
Focusing Range 5 m to infinity
Display HD 1024x768
Video/Photo Format AVI / JPG
Temperature Imaging Palettes 11 Image palettes
Interfacing S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder); Micro-USB (External Battery Pack)
Battery Type Two CR123A 3V Lithium Batteries
Battery Life (Operating) Up to 5 hr
Power Supply 5V USB / 3.6~7.2V
Operating Temperature Range -40°C to +70°C (-40°F to +158°F)
Degree of Protection IP67
Weight 0.68 kg (1.5 lb)
Overall Dimensions 190 × 84 × 64 mm (7.5 × 3.3 × 2.5 in)

optional equipment

Quick release Front scope mount Rusan for AGM Victrix, Comanche 22/X

Quick release Front scope mount Rusan for AGM Victrix, Comanche 22/X

PART NO.: 6606RMV1

Additional Professional Quick release Front scope mount Rusan with reducing ring for AGM Victrix, Comanche 22 (available sizes
, 34 mm, 36 mm, 38 mm, 40 mm, 41 mm
, 42 mm, 42.5 mm, 44 mm, 46 mm, 46.7 mm,
47 mm, 48 mm, 49 mm, 50 mm, 51 mm,
52 mm, 53 mm, 54 mm, 55 mm, 56 mm,
57 mm, 57.5 mm, 58 mm, 58.4 mm,
59 mm, 59.5 mm, 60 mm, 60.5 mm,
61 mm, 62 mm,

60 mm, 60.5 mm, 61 mm, 62 mm,
63 mm, 63.5 mm, 64 mm, 64.5 mm, 65 mm,
66 mm, 67 mm, 68 mm, 69 mm,
71 mm, 72 mm, 80 mm),
please mention needed size in order's comments, if you have questions, please do not hesitate to contact us

€ 190.00
Add to cart
AGM Front Scope Mount #1

AGM Front Scope Mount #1

PART NO.: 6606SM11

AGM Front Scope Mount is the optional adapter to install the clip-on device onto day optics with 25.4-30 mm objective diameter. This adapter works with Comanche-22, Victrix TC, Anaconda TC series clip-ons (NOT COMPATIBLE WITH RATTLER SERIES CLIP ON’S). Use the optional Front Scope Mount o attach a clip-on device to the front lens of a daytime optic. The mount must fit with the day optics front lens diameter. There are optional mounts for 25.4-30 mm, 38-42 mm, 46.7-50 mm, 56-58.7 mm and 62 mm objective lenses diameter. DIAMETER OF THE INSERTS: 25,4 mm; 30,0 mm CLEAR APERTURE OF DAY SCOPE LENS: 20 mm; 24 mm EXAMPLE OF THE SCOPES: - Leupold 1.5-5x20 PR (25,4 mm insert) - Leupold 1.5-5x20 MR/T M2 (30,0 mm insert) - Zeiss 1.1-4x24T (30,0 mm insert)

€ 124.00
Add to cart
AGM Front Scope Mount #2

AGM Front Scope Mount #2

PART NO.: 6606SM21

AGM Front Scope Mount is the optional adapter to install the clip-on device onto day optics with 38-42 mm objective diameter. This adapter works with Comanche-22, Victrix TC, Anaconda TC series clip-ons (NOT COMPATIBLE WITH RATTLER SERIES CLIP ON’S). Use the optional Front Scope Mount o attach a clip-on device to the front lens of a daytime optic. The mount must fit with the day optics front lens diameter. There are optional mounts for 25.4-30 mm, 38-42 mm, 46.7-50 mm, 56-58.7 mm and 62 mm objective lenses diameter. DIAMETER OF THE INSERTS: 38,0 mm; 42,0 mm CLEAR APERTURE OF DAY SCOPE LENS: 32 mm; 36 mm EXAMPLE OF THE SCOPES: - Meopta Artemis 2000 4x32 (38,0 mm insert) - Leupold Mark 4 3-9x36 (42,0 mm insert) - Leupold Mark 4 2.5-8x36 (42,0 mm insert) - Kahles 4x36 (42,0 mm insert)

€ 124.00
Add to cart
AGM Front Scope Mount #3

AGM Front Scope Mount #3

PART NO.: 6606SM31

AGM Front Scope Mount is the optional adapter to install the clip-on device onto day optics with 46.7-50 mm objective diameter. This adapter works with Comanche-22, Victrix TC, Anaconda TC series clip-ons (NOT COMPATIBLE WITH RATTLER SERIES CLIP ON’S). Use the optional Front Scope Mount o attach a clip-on device to the front lens of a daytime optic. The mount must fit with the day optics front lens diameter. There are optional mounts for 25.4-30 mm, 38-42 mm, 46.7-50 mm, 56-58.7 mm and 62 mm objective lenses diameter. DIAMETER OF THE INSERTS: 46,7 mm; 48,0 mm; 48,7-49,0 mm; 49,5 mm; 50,0 mm CLEAR APERTURE OF DAY SCOPE LENS: 40 mm; 42 mm EXAMPLE OF THE SCOPES: - Leupold 3.5-10x40 (46,7 mm insert) - Leupold VX-II 3-9x40 (46,7 mm insert) - Zeiss 1.5-6x42 (48,0 mm insert) - Swarovski PV-N 2.5-10x42 (48,0 mm insert) - Meopta Artemis 3000 3-9x42 (48,7-49,0 mm insert) - Meopta Artemis 3000 4-12x40 (49,5 mm insert) - Schmidt & Bender 10x42 (50,0 mm insert)

€ 124.00
Add to cart
AGM Front Scope Mount #4

AGM Front Scope Mount #4

PART NO.: 6606SM41

AGM Front Scope Mount is the optional adapter to install the clip-on device onto day optics with 56-58.7 mm objective diameter. This adapter works with Comanche-22, Victrix TC, Anaconda TC series clip-ons (NOT COMPATIBLE WITH RATTLER SERIES CLIP ON’S). Use the optional Front Scope Mount o attach a clip-on device to the front lens of a daytime optic. The mount must fit with the day optics front lens diameter. There are optional mounts for 25.4-30 mm, 38-42 mm, 46.7-50 mm, 56-58.7 mm and 62 mm objective lenses diameter. DIAMETER OF THE INSERTS: 56,0 mm; 57,0 m; 58,7 mm CLEAR APERTURE OF DAY SCOPE LENS: 50 mm EXAMPLE OF THE SCOPES: - Zeiss 2.5 10x50 (56,0 mm insert) - Schmidt & Bender 3-12x50 (57,0 mm insert) - Leupold 4.4-14x50 (58,7 mm insert) - Leupold VX-III 3.5-10x50 (58,7 mm insert)

€ 124.00
Add to cart
AGM Front Scope Mount #5

AGM Front Scope Mount #5

PART NO.: 6606SM51

AGM Front Scope Mount is the optional adapter to install the clip-on device onto day optics with 62 mm objective diameter. This adapter works with Comanche-22, Victrix TC, Anaconda TC series clip-ons (NOT COMPATIBLE WITH RATTLER SERIES CLIP ON’S). Use the optional Front Scope Mount o attach a clip-on device to the front lens of a daytime optic. The mount must fit with the day optics front lens diameter. There are optional mounts for 25.4-30 mm, 38-42 mm, 46.7-50 mm, 56-58.7 mm and 62 mm objective lenses diameter. DIAMETER OF THE INSERTS: 25,4 mm; 30,0 mm CLEAR APERTURE OF DAY SCOPE LENS: 20 mm; 24 mm EXAMPLE OF THE SCOPES: - Leupold 1.5-5x20 PR (62,0 mm insert) - Leupold 1.5-5x20 MR/T M2 (62,0 mm insert) - Zeiss 1.1-4x24T (62,0 mm insert)

€ 124.00
Add to cart
Hard Case

Hard Case

PART NO.: 6610HCS1

Protective case, made of solid, robust material and designed special for safe storage and transportation.

€ 122.00
Add to cart
AGM Wi-Fi Attachment

AGM Wi-Fi Attachment

PART NO.: 6305WIF1

External WiFi Module for AGM Thermal imaging systems will help you to connect your device and transmit the entire image captured by your thermal vision device to your smartphone or tablet. After a few simple steps your mobile device could become a viewfinder. Photo and video recorded by thermal vision system will be initialized via smartphone and it will not even distract you from observation session.

€ 232.00
Add to cart
AGM HD Recorder

AGM HD Recorder

PART NO.: 6305HDR1

External Recorder for AGM Thermal imaging systems is a high-tech, compact and durable device that will allow you to record anything you like within up to 4 hours of operational time. High-quality video with 640x480 resolution would become a nice opportunity to review the best moments of your observation sessions.

€ 265.00
Add to cart
AGM Extended Battery Pack

AGM Extended Battery Pack

PART NO.: 6308EXB1

Extended Battery Pack - Extended Battery Pack with Rechargeable Batteries and battery charger for all AGM High Performance Digital and Thermal Devices

€ 230.00
Add to cart
