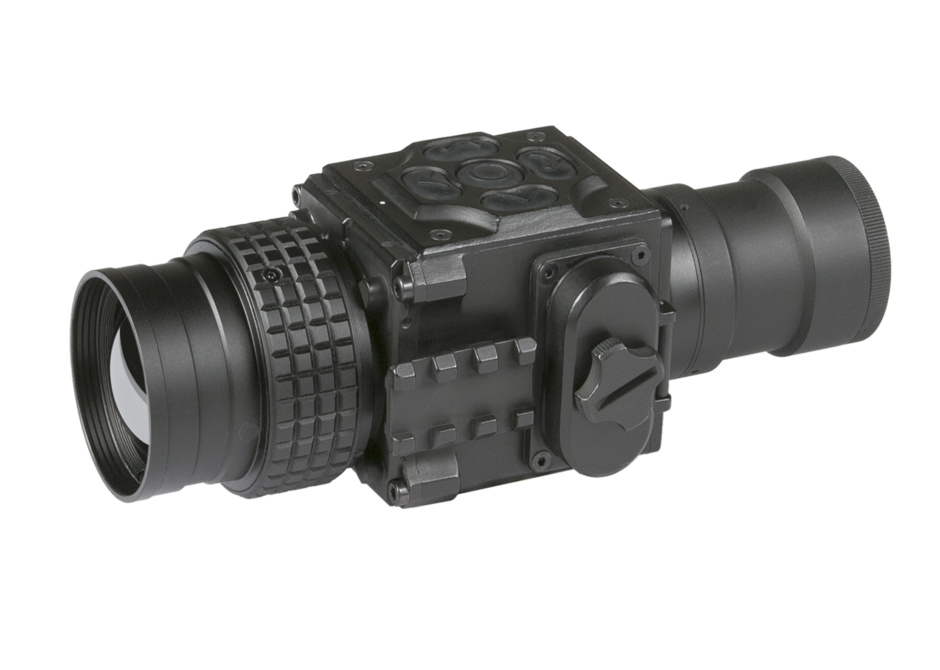

The AGM Victrix is a compact thermal imaging clip-on system that allows quick transformation of the day optics into a thermal imaging device without any special tools or accessories. The Victrix can be easily attached to scopes with magnification up to 8x for medium range use.
Powered with two CR123 batteries the unit provides up to 5 hours of continuous operation. An optional high-capacity external battery pack is capable of increasing the total operation time to up to 44 hours.
The Victrix can be also connected to an optional video recorder for shooting real time video or external Wi-Fi module in order to connect with smartphones.
|Detector Type||17μm Uncooled Microbolometer based on ULIS/Lynred ASi detector|
|Refresh Rate||50 Hz|
|Lens System||38 mm; F/1.0|
|Field of View (H × V)||9.8° x 7.4°|
|Exit Pupil Diameter||27 mm|
|Digital Zoom||1×, 2×, 4×, PIP|
|Focusing Range||5 m to infinity|
|Display||HD Display 1024x768|
|Video/Photo Format||AVI / JPG|
|Temperature Imaging Palettes||11 Image palettes|
|Interfacing||S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder); Micro-USB (Power Bank 5V)|
|Battery Type||Two CR123A 3V Lithium Batteries|
|Battery Life (Operating)||Up to 5 hr|
|Power Supply||5V USB / 3.6-7.2 V|
|Operating Temperature Range||-40°C to +70°C (-40°F to +158°F)|
|Degree of Protection||IP67|
|Weight||0.59 kg (1.3 lbs)|
|Overall Dimensions||181 x 84 x 64 mm (7.1 x 3.3 x 2.5 in)|
|Package Inludes||Thermal Imaging Clip-On, Lens Tissue, Soft Carrying Case, User Manual|
PART NO.: 6610HCS1
Protective case, made of solid, robust material and designed special for safe storage and transportation.
AGM Wi-Fi Attachment
PART NO.: 6305WIF1
External WiFi Module for AGM Thermal imaging systems will help you to connect your device and transmit the entire image captured by your thermal vision device to your smartphone or tablet. After a few simple steps your mobile device could become a viewfinder. Photo and video recorded by thermal vision system will be initialized via smartphone and it will not even distract you from observation session.
AGM HD Recorder
PART NO.: 6305HDR1
External Recorder for AGM Thermal imaging systems is a high-tech, compact and durable device that will allow you to record anything you like within up to 4 hours of operational time. High-quality video with 640x480 resolution would become a nice opportunity to review the best moments of your observation sessions.
AGM Extended Battery Pack
PART NO.: 6308EXB1
Extended Battery Pack - Extended Battery Pack with Rechargeable Batteries and battery charger for all AGM High Performance Digital and Thermal Devices
AGM Front Scope Mount #1
PART NO.: 6606SM11
for Daytime Optics with 25.4-30 mm Objective Diameter (works with Comanche 22, Victrix, Anaconda) DIAMETER OF THE INSERTS, MM25,4 ; 30,0 CLEAR APERTURE OF DAY SCOPE LENS, MM 20; 24 EXAMPLE OF THE SCOPES Leupold 1.5-5x20 PR 30,0 Leupold 1.5-5x20 MR/T M2; Zeiss 1.1-4x24T
AGM Front Scope Mount #2
PART NO.: 6606SM21
for Daytime Optics with 38-42 mm Objective Diameter (works with Comanche 22, Victrix, Anaconda) DIAMETER OF THE INSERTS, MM 38,0; 42,0 CLEAR APERTURE OF DAY SCOPE LENS, MM 32; 36 EXAMPLE OF THE SCOPES Meopta Artemis 2000 4x32 Leupold Mark 4 3-9x36; Leupold Mark 4 2.5-8x36; Kahles 4x36
AGM Front Scope Mount #3
PART NO.: 6606SM31
for Daytime Optics with 46.7-50 mm Objective Diameter (works with Comanche 22, Victrix, Anaconda) DIAMETER OF THE INSERTS, MM 46,7; 48,0; 48,7-49,0; 49,5; 50,0 CLEAR APERTURE OF DAY SCOPE LENS, MM 40; 42 EXAMPLE OF THE SCOPES Leupold 3.5-10x40; Leupold VX-II 3-9x40 48,0 Zeiss 1.5-6x42; Swarovski PV-N 2.5-10x42 48,7-49,0 Meopta Artemis 3000 3-9x42 49,5 Meopta Artemis 3000 4-12x40 50,0 Schmidt & Bender 10x42
AGM Front Scope Mount #4
PART NO.: 6606SM41
for Daytime Optics with 56-58.7 mm Objective Diameter (works with Comanche 22, Victrix, Anaconda) DIAMETER OF THE INSERTS, MM 56,0; 57,0; 58,7 CLEAR APERTURE OF DAY SCOPE LENS, MM 50 EXAMPLE OF THE SCOPES Zeiss 2.5 10x50 57,0 Schmidt & Bender 3-12x50 58,7 Leupold 4.4-14x50; Leupold VX-III 3.5-10x50
AGM Front Scope Mount #5
PART NO.: 6606SM51
for Daytime Optics with 62 mm Objective Diameter (works with Comanche 22, Victrix, Anaconda) DIAMETER OF THE INSERTS, MM 62,0 CLEAR APERTURE OF DAY SCOPE LENS, MM 56 EXAMPLE OF THE SCOPES Zeiss 3-12x56; Swarovski 2.5-10x56; Kahles CSX 3-12x56
