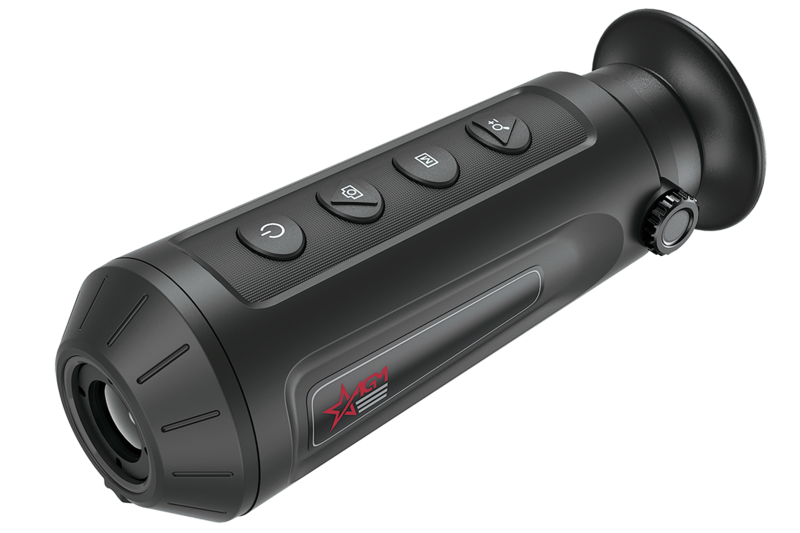

AGM TAIPAN TM15-256 THERMAL IMAGING MONOCULARS

PART NO.: 3092851012TA51
product
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
€ 888.00
Add to cart

Description and Features

The Taipan TM15-256 handheld observational thermal monocular is equipped with a 256×192 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.



  • 256×192 resolution, 12 μm, high sensitivity detector
  • Adaptive AGC, DDE, 3D DNR
  • 720 × 540 LCOS display
  • Built-in rechargeable Lithium battery
  • Up to 8 hours continuous running (with Wi-Fi hotspot function off)
  • “Auto Power Off” and “Sleep” modes
  • Wi-Fi hotspot
  • Type-C interface
  • Limited 3-year warranty

SPECIFICATIONS

Resolution 640 × 512
Detector 12μm, Uncooled, 50 Hz
Lens System 50 mm; F/1.0
Magnification 2.5× - 20×
Field of View 8.8° × 7.0°
Digital Zoom 1×, 2×, 4×, 8×
Detection Range (6’ object) 2500 m/yd
Diopter Adjustement -3 to +1 dpt
Display 0.39-inch, OLED, 1024×768, 50 Hz
Diopter Adjustment Range -5 to +5 dpt
Focusing Range 10 m to infinity
Distance Measurement Yes (Stadiametric Rangefinder)
Palettes Black Hot, White Hot, Red Hot, Fusion
Scene Mode Jungle, Recognition
Picture In Picture Mode (PIP) Yes (2× Zoom)
Hotspot Yes
Standby Mode Yes
Video Recording Yes
Picture Snapshot Yes
CVBS Output Yes (via USB)
Defective Pixels Correction (DPC) Yes
Uniformity Correction Auto, Manual, External Correction
Storage Built-in EMMC (16 GB)
Battery Type Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
Battery Life (Operating, 20°C) Up to 4.5 hr
External Power Supply 5 VDC/2 A, USB Type-C interface
Operating Temperature Range -20°C to +55°C (-4°F to +131°F)
Degree of Protection IP67
Drop Test Height 1.5m (4.9 feet)
Weight (w/o battery) 0.7 kg ( 1.5 lb)
Overall Dimensions 196 × 70× 66 mm (7.7 × 2.7 × 2.6 in)
Package Includes Thermal Imaging Bi-ocular, USB Cable, Lens Cloth, Manual
