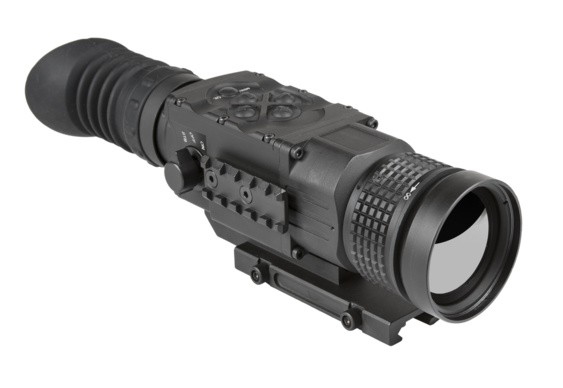

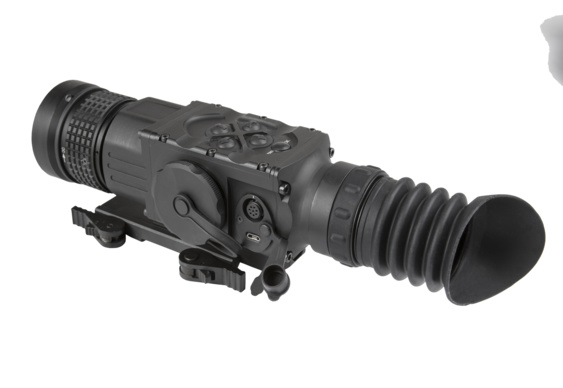

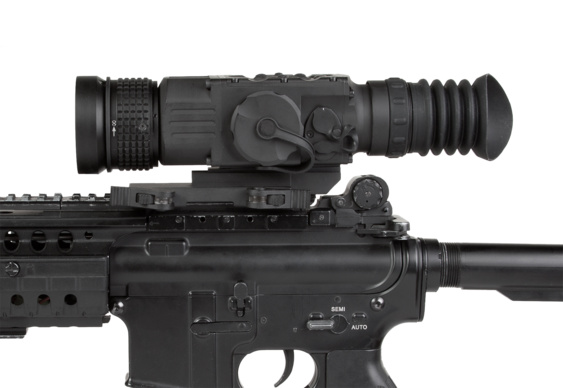

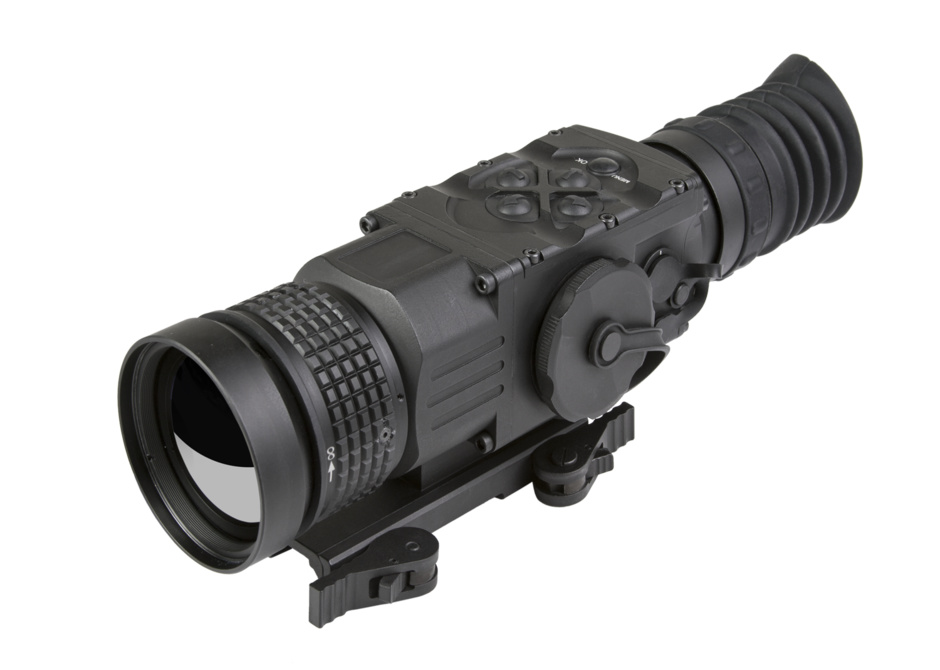

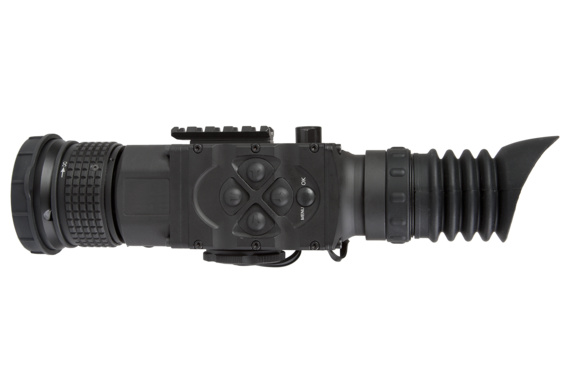

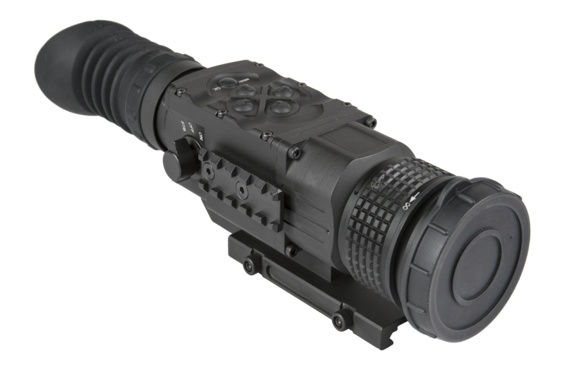

The AGM Python is a long-wave infrared, uncooled, thermal imaging weapon sight designed for 24 hours operation, eliminating the need to dismount the unit from the rifle.
The housing is made of high-grade aircraft aluminum alloy, making it lightweight, but in the same time tough to tolerate high recoil. The waterproof design of AGM Python grants excellent performance even under severe environmental and weather conditions. The device has a variety of modifications providing users with opportunity to choose between a set of different Germanium objective lenses ( 25 mm, 50 mm, or 75 mm) and FLIR Tau 2 detector types (336x256 or 640x512), which allows the operator to achieve the most suitable performance for the tasks he faces.
The Python’s user-friendly interface, comfortable and ergonomic buttons, together with the wireless remote control, makes adoption and application incredibly simple. The Python includes a variety of color palettes and reticle patterns, adjustable image brightness and contrast, an internal menu, and digital zoom.
Optionally the capabilities of the device can be extended with WiFi module, external video recorder or monitor. While long term missions any commercially available battery pack can be connected via micro-USB port to drastically increase operation time.
| Detector type | FLIR Tau 2 336 x 256 17μm Uncooled Microbolometer |
| Refresh rate | 60 Hz |
| Resolution | 336x256 |
| Start up | 3 seconds |
| Lens system | 50 mm; F/1.0 |
| Optical magnification | 3x |
| Field of view (H × X) | 7.8° x 5.9° |
| Digital zoom | 1x, 2x, 4x |
| Diopter adjustment range | -5 to +5 dpt |
| Focusing range | 5 m to infinity |
| Exit Pupil Diameter | 10 mm |
| Eye Relief | 45 mm |
| Display | (800x600) |
| Video output | Composite analogue video (PAL) |
| Imaging palettes | Changeable |
| Reticle | Changeable reticle pattern |
| Remote control | Wireless (Activates/ Deactivates the scope in Standby Mode) |
| Interfacing | - S620 Connector (Power In, Analog Video In/Out, HD Video Recorder, Extended Battery Attachment ) - Micro USB (Power Bank, Video Recorder, WiFi Attachment) |
| Battery type | Two CR123A 3V Lithium Batteries or CR123 Type Rechargeable Batteries with Voltage from 3.0V to 3.7V (2) |
| Battery life (operating) | Up to 4 hr (optional up to 12 hrs) |
| Extended battery attachment (optional) | Two 18650 rechargeable batteries (3.7V), four CR123 rechargeable batteries with voltage 3.7V max, or four standard CR123A 3V Lithium batteries (operational time up to 8 hr) |
| Environment rating | Waterproof |
| Operating temperature range | -40°C to +50°C (-40°F to +122°F) |
| Storage temperature | -50°C to +70°C -58°F to +158°F) |
| Weight | 0.84 kg (1.85 lbs) |
| Overall dimensions | 228 × 71 × 81 mm (9.0 × 2.8 × 3.2 in) |
| Package includes | Thermal imaging riflescope, Lens cloth, Soft carrying case, User manual |
Hard Case
PART NO.: 6610HCS1
Protective case, made of solid, robust material and designed special for safe storage and transportation.
AGM Wi-Fi Attachment
PART NO.: 6305WIF1
External WiFi Module for AGM Thermal imaging systems will help you to connect your device and transmit the entire image captured by your thermal vision device to your smartphone or tablet. After a few simple steps your mobile device could become a viewfinder. Photo and video recorded by thermal vision system will be initialized via smartphone and it will not even distract you from observation session.
AGM HD Recorder
PART NO.: 6305HDR1
External Recorder for AGM Thermal imaging systems is a high-tech, compact and durable device that will allow you to record anything you like within up to 4 hours of operational time. High-quality video with 640x480 resolution would become a nice opportunity to review the best moments of your observation sessions.
AGM Extended Battery Pack
PART NO.: 6308EXB1
Extended Battery Pack - Extended Battery Pack with Rechargeable Batteries and battery charger for all AGM High Performance Digital and Thermal Devices
