AGM NVM40 NL1 ECHO IIT NIGHT VISION MONOCULAR

PART NO.: 11NV4122303011E
product
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
Other Models ARE Also Available:
Package Includes
    Soft Carrying Case | Packing Box | User Manual | Lens Tissue | One Lithium Battery CR123A
Downloads export restrictions: Important Export Restrictions! Some products on this web site are meant for use or resale only within the EU zone and are subject to EU export control regulations. Licensing may be required for exporting outside the EU countries. Please contact us (info@agmglobalvision.eu) for additional information.

Description and Features

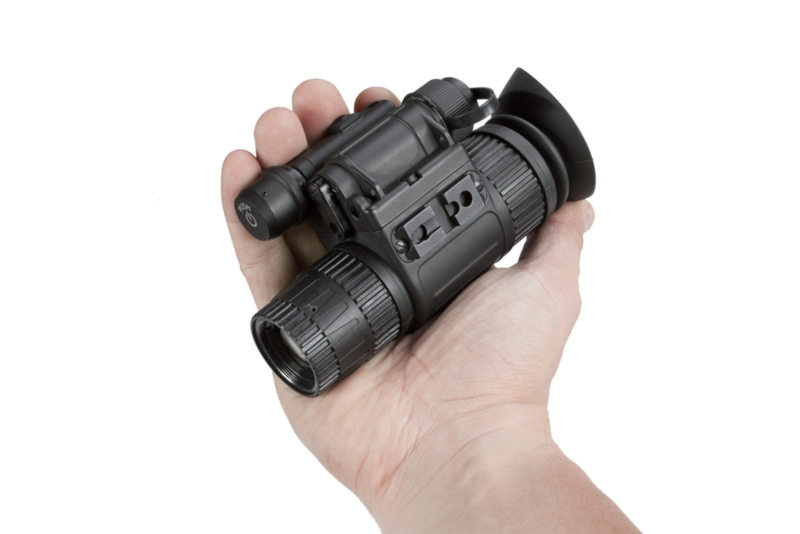

AGM NVM40 Multi-Purpose HP Night Vision Monocular Gen 2+ "Photonis Autogated" Manual Gain control ECHO IIT green

The NVM-40 is the standard by which all commercial versatile monocular systems should be judged, now and in the future. The NVM-40 employs best on the consumer market multi-coated optics, built into a rugged, compact, and ergonomic composite housing. We built this device to exceed user expectations, as a result, the NVM-40 built around commercial grade image intensifiers offers unmatched performance even in rain, salt water, temperature extremes, and high-humidity environments without costing a fortune. AGM NVM40 can be used in some of the most challenging environments. Leading speleologists and nature enthusiasts are having a blast with them in the toughest jungle conditions in their search for rare species and the deepest cave adventures. The AGM NVM40 can be used as a handheld device, or mounted on the included head harness in other words putting your tent or gathering the wood for the fire, night fishing or simply admiring the stars is getting more comfortable than it used to be.
The NVM-40 is available with a vast array of accessories, including 3x and 5x magnification lenses for mid to long-range viewing; head or helmet mounts to enable hands-free operation; and, a detachable IR illuminator for long-range use.


  • LOWEST PRICE on Gen 2+ Green Phosphor ECHO monocular on the market
  • 14 Days Money Back Guarantee
  • Compact, sturdy design
  • Head-mountable for hands-free usage
  • Bright light cut-off system
  • Ergonomic, simple, easy-to-operate controls
  • Utilizes a single CR123A Lithium or AA battery
  • Built-in Infrared illuminator and flood lens
  • 3-Year warranty

SPECIFICATIONS

Image Intensifier Tube Gen 2+ "Level 1" "Photonis Autogated" Manual Gain control ECHO IIT green
Cosmetic level of IIT NL1 the best quality
Resolution 57-74 lp/mm
FOM 1600-2000
SNR 23-28
Visible Spots Clear FOV
NL1 manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.
Magnification 1x (3x and 5x optional)
Lens System 27 mm; F/1.3
FOV 40°
Focus Range 0.25 m to Infinity
Eye Relief 17 mm
Diopter Adjustment -6 to +2 diopters
LED Indicators (in the FOV) - Low Battery - IR On - Excessive Light Conditions
Automatic Brightness Control Yes
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Infrared Illuminator Yes; Two power levels
Battery Type One CR123A (3V) or AA (1.5 V)
Battery Life (Operating) Up to 40 hours at 20°C
Operating Temperature Range -40°C to +50°C (-40°F to +122°F)
Storage Temperature Range -50°C to +50°C (-58°F to +122°F)
Weight 0.34 kg (0.75 lb)
Overall Dimensions 175 × 57 × 80 mm (6.9 × 2.2 × 3.1 in)
Dimensions (without Eyecup and Lens Cap) 122 × 49 × 73 mm (4.8 × 1.9 × 2.8 in)

optional equipment

AGM Cap Goggle Kit W

AGM Cap Goggle Kit W

PART NO.: 6104GKW1

AGM Cap Goggle Kit allows mounting of night vision device onto cap contruction for hands-free use.

€ 281.00
Add to cart
AGM Sioux940 Long-Range Infrared Illuminator comes included with Rechargeable Battery and Charger

AGM Sioux940 Long-Range Infrared Illuminator comes included with Rechargeable Battery and Charger

PART NO.: 501SIOUX940IR1

AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.

€ 185.00
Add to cart
AGM Demist Shield NVM40

AGM Demist Shield NVM40

PART NO.: 6101DS41

The demist shield prevents condensation on the optics during long use and rapid temperature changes.

€ 20.00
Add to cart
AGM Sacrificial Window NVM40

AGM Sacrificial Window NVM40

PART NO.: 6101SS41

The sacrifical window protects your night vision optics from dust, dirt and bad weather. It is quite useful in high winds or storm conditions. This sacrificial window can be discharged or replaced and your optics remains untouchable and in good condition.

€ 20.00
Add to cart
Hard Case

Hard Case

PART NO.: 6610HCS1

Protective case, made of solid, robust material and designed special for safe storage and transportation.

€ 122.00
Add to cart
AGM Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger

AGM Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger

PART NO.: 501SIOUX850IR1

AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.

€ 175.00
Add to cart
AGM Afocal Magnifier Lens Assembly, 3X

AGM Afocal Magnifier Lens Assembly, 3X

PART NO.: 61023XA1

High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.

€ 347.00
Add to cart
AGM Afocal Magnifier Lens Assembly, 5X

AGM Afocal Magnifier Lens Assembly, 5X

PART NO.: 61025XA1

High-performance Afocal lenses quickly convert the night vision monoculars or goggles into a long-range night vision devices. The AGM afocal lenses incorporate very fast optics and perfect field of view. Ideal for long range observation. Afocal lens by AGM is simple and quick to install in front of existing front lens of night vision device for instant visual enhancement. To mount the afocal lens to the device, screw it into the threading of the standard 1X objective lens.

€ 553.00
Add to cart
