Refurbished AGM Fuzion LRF TM50-640 THERMAL MONOCULAR

PART NO.: 7142510001306FL6

€ 1,650.00 € 1,995.00

Package Includes

USB Cable

User Manual

Lens Cloth

2x 18650 Rechargeable Batteries

EU Plug

Rubber eyepiece

Battery Charger

Downloads

Description and Features

Ideal For

Certified Refurbished Value
High-Resolution 640 Thermal Core
Bi-Spectrum Day & Night Observation
Long-Range Target Identification
Outdoor Exploration and Search Support

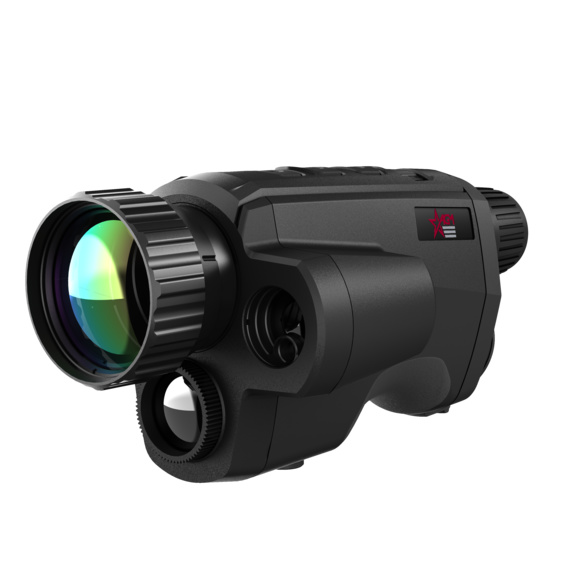

Refurbished AGM Fuzion LRF: Premium 640 Resolution Thermal & Digital Day/Night Vision Monocular

The AGM Fuzion LRF Handheld Thermal & Digital Day/Night Vision monoculars are some of the most technologically advanced and feature-packed optics in the world. This certified refurbished offer features a limited quantity of only 2 pieces. Each unit is in like-NEW condition, has fully passed our comprehensive Quality Control (QC) inspection, and is optimized for peak operational capacity.

The primary engine behind these monoculars lies within the main thermal viewing channel, with its high-sensitivity 12-micron 640×512 thermal detector. This advanced sensor ensures that large-sized heat signatures are detectable at up to 2600 meters, while foliage and other background imagery remain crisp and detailed at closer ranges. Unlike standard thermal units, the Fuzion LRF also comes outfitted with a digital night vision channel, aiding significantly in target recognition. Part of our trusted AGM thermal monoculars portfolio, it delivers a highly intuitive interface and ergonomic operating controls for comfortable field use.

Please contact us for additional information or conditional inquiries: info@agmglobalvision.eu

System Features

640×512 Resolution & 12μm Detector

The high-sensitivity VOx thermal detector with NETD below 35 mK captures detailed heat signatures and supports detection at distances up to 2,600 meters.

Dual-Spectrum Image Fusion

The imaging system combines thermal information with digital optical detail to improve object highlighting, scene awareness, and target recognition.

1920×1080 Low-Light Optical Channel

The progressive-scan CMOS optical sensor provides additional visible scene detail during daylight, dawn, dusk, and other low-light conditions.

Integrated 600m Laser Rangefinder

The eye-safe Class 1 laser rangefinder provides direct distance measurements up to 600 meters with a stated accuracy of approximately ±1 meter.

1024×768 OLED Display

The 0.39-inch high-resolution OLED display provides deep black levels, strong contrast, and detailed image rendering during extended observation.

Smooth 50 Hz Thermal Imaging

A fast 50 Hz thermal refresh rate delivers fluid panning and responsive observation when following moving subjects.

Certified Refurbished, 6-Month Warranty & Free EU Shipping

This quality-controlled, like-new refurbished unit is offered with the 6-month limited warranty and free EU delivery stated on its AGM product page.

Thermal, Optical & Fusion Channels

Users can switch between a pure thermal image, the digital day-and-night optical channel, or a combined fusion view to suit current conditions.

3×–24× Magnification

The 50 mm F1.2 thermal lens and selectable 1×, 2×, 4×, and 8× digital zoom levels support detailed long-distance observation.

Video Recording & Image Capture

Onboard media functions allow thermal and fused video recordings and image snapshots to be saved directly on the device.

16GB EMMC Internal Storage

The integrated 16GB memory module provides local capacity for recorded videos and image snapshots without requiring a memory card.

Wi-Fi Hotspot & App Workflow

Wireless connectivity supports live viewing, media access, and compatible device controls through the AGM mobile application.

Energy-Saving Standby Mode

Standby mode temporarily reduces display activity to conserve power while keeping the monocular ready for quick reactivation.

Replaceable 18650 Battery

One removable and rechargeable 18650 battery provides up to five hours of operation with Wi-Fi and CVBS output switched off.

USB Type-C External Power Support

The 5 VDC/2 A USB Type-C connection supports compatible external power supplies and portable power banks for extended operation.

IP67 Waterproof Housing

The sealed IP67 housing provides dependable protection against rain, dust, and demanding outdoor weather conditions.

SPECIFICATIONS

Detector Type

12 μm VOx Uncooled Focal Plane Arrays

Resolution

640 × 512

Refresh Rate

50 Hz

NETD

Less than 35 mK (25°C, F#=1.2)

Response Waveband

8 μm to 14 μm

Lens System

50 mm; F1.2

Field of View (HxV)

8.8° × 7°

Magnification

3x – 24x

Digital Zoom

1x, 2x, 4x, 8x

Detection Range (6’ object)

2,600 m/yd

Monitor

1024x768, 0.39 inch, OLED, 50 FPS

FFC (Flat Field Correction)

Auto, Manual, External Correction

Palettes

Black Hot, White Hot, Red Hot, Fusion, Visible,
Image Fusion

Highest Temperature Spot Tracking

Yes

Scene Mode

Jungle, Recognition

Optical Image Sensor

1/2” Progressive Scan CMOS, 1920×1080@25fps

Optical Sensor Wavelength

400-1000 nm

Optical Module Lens Focal Length

22 mm

Distance Measurement

Laser Rangefinder: up to 600 m, ±1 m accuracy

Laser Wavelength

905 nm

Laser Safety Class

Class 1

Hotspot

Yes

Sleep Mode

Yes

Built-in Storage

16 GB EMMC

Video Recording

On-board video recording

Image Capture

Yes

CVBS Output

Yes (via USB)

Battery Type

One 18650 rechargeable battery (removable)

Battery Operating Time

Up to 5 hours continuous running
(@25°C, WiFi and CVBS off)
Up to 3 hours continuous running
(@25°C, WiFi and CVBS on)

Battery Capacity Display

Yes

Power

5 VDC/2 A, USB Type-C interface
Supports external power supply

Working Temperature

-20°C to 55°C (-4°F to 131°F)

Protection Level

IP67 (Waterproof)

Dimensions

184 × 87 × 74 mm (7.2 × 3.4 × 2.9 in)

Weight (w/o batteries)

0.59 kg (1.3 Ib)
