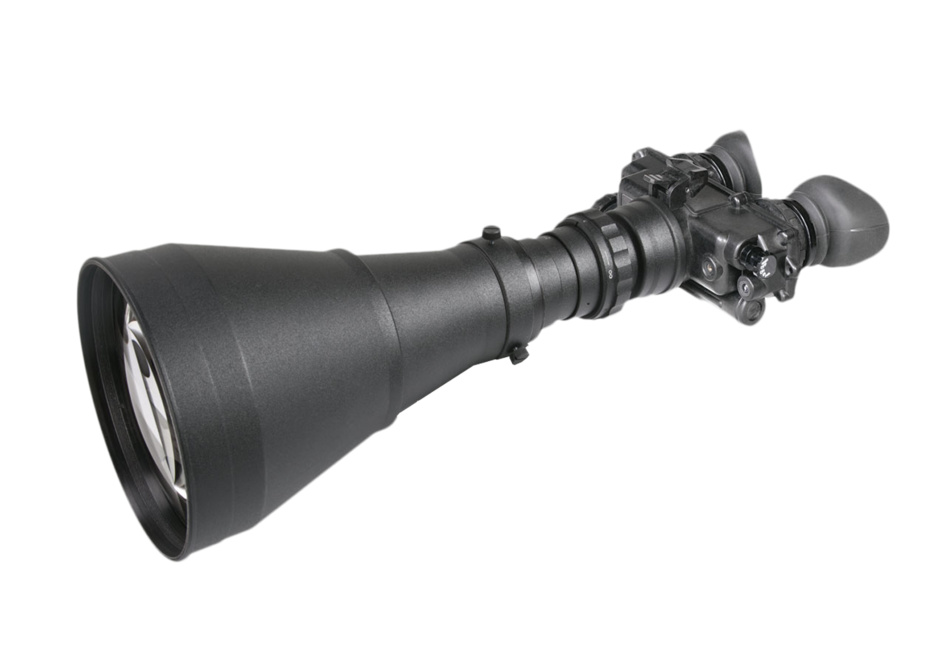

AGM FOXBAT-LE10 NL1i NIGHT VISION BI -OCULAR

PART NO.: 13FXL922253011i

Email for quote

Package Includes

Downloads

Description and Features

The AGM FoxBat-LE night vision bi-ocular is the perfect tool for mid-range and long-range observation. The FoxBat-LE is compatible with a range of professional highquality objective lenses to match all users’ requirements currently available in three configurations - 5x, 8x, and 10x magnification.
The FoxBat-LE is a professional night vision device favored by law enforcement and military units due to its unmatched performance, even in extreme temperatures and challenging weather conditions such as rain or excessive humidity. The device can be outfitted with either a Gen 2+ or Gen 3 high-performance image intensifier (II) tube, which can be repaired or upgraded easily. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. The FoxBat-LE is also equipped with Automatic Brightness Control (ABC), which adjusts the image brightness automatically, providing the highest possible image quality even in changing light conditions. FoxBat-LE is supplied with two AA batteries and its operating time is up to 40 hours of continuous use.

level 1 maximum spots allowed in each zone*
spot size (in)	zone 1	zone 2	zone 3
>.015 or larger	0	0	0
>.012 – .015	0	0	0
>.009 – .012	0	0	0
>.006 – .009	0	1	2
.003 – .006	1	2	3
note: not more than 4 spots allowed

5x, 8x, or 10x magnification
Lightweight rugged design
Waterproof
Auto brightness control
Ergonomic and easy to operate controls
3-Year Warranty

SPECIFICATIONS

Image Intensifier Tube	Gen 2+ "Level 1" International (green phosphor tube)
Cosmetic level of IIT	NL1i – the best quality
Resolution	51-64 lp/mm
Visible Spots	Clear FOV
NL1i	manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.
Magnification	9.6x
Lens System	250 mm; F/2.0
FOV	4°
Focus Range	50 m to Infinity
Diopter Adjustment	-6 to +2 dpt
LED Indicators	Low battery; IR On; Excessive light conditions
Automatic Brightness Control	Yes
Bright Light Cut-Off	Yes
Automatic Shut-Off System	Yes
Infrared Illuminator	Detachable long-range IR illuminator
Battery Type	2 AA Alkaline or 1 Lithium (BA-5567/U)
Battery Life (Operating)	Up to 40 hours at 20°C
Operating Temperature Range	-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range	-50°C to +50°C (-58°F to +122°F)
Weight	1.9 kg (4.2 lbs)
Overall Dimensions	382 × 152 × 137 mm (15.0 × 6.0 × 5.4 in)
Package Inludes	Night Vision Binocular, Sioux850 Detachable Long-Range IR Illuminator Lens Cloth, Soft Carrying Case

optional equipment

AGM Sioux940 Long-Range Infrared Illuminator comes included with Rechargeable Battery and Charger

PART NO.: 501SIOUX940IR1

AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.

€ 185.00

AGM Titanium Tripod with a Grip

PART NO.: 6606TTR1

Titanium Tripod with a Grip offers sturdy, professional support for your device. The quick-release plate on the head features a standard 1/4”-20 threaded screw for mounting compatible scopes, cameras, or other gear. PISTOL GRIP can take the ease of spotting or photographing on a tripod to a new level.

€ 293.00
