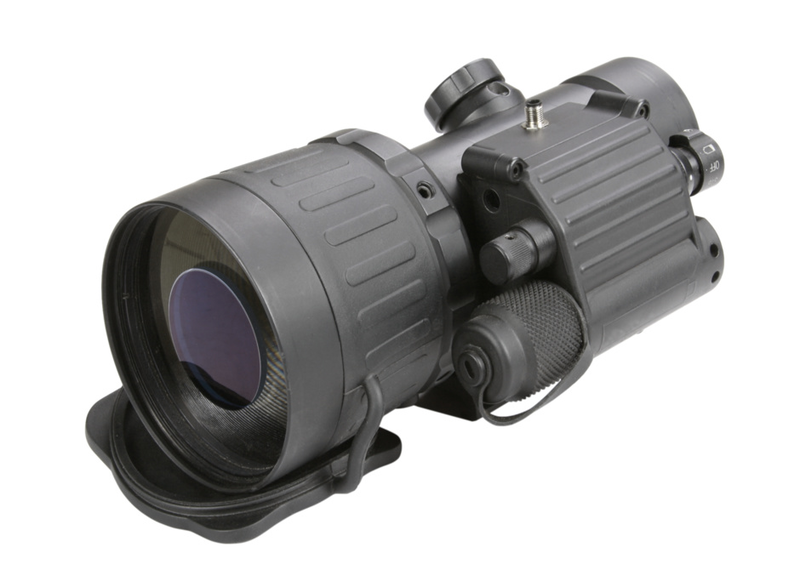

AGM COMANCHE 40 NW1i NIGHT VISION CLIP-ON SYSTEM

PART NO.: 16CO4122304011i

Email for quote

Other Models ARE Also Available:

Package Includes

Downloads

export restrictions: Important Export Restrictions! Some products on this web site are meant for use or resale only within the EU zone and are subject to EU export control regulations. Licensing may be required for exporting outside the EU countries. Please contact us (info@agmglobalvision.eu) for additional information.

Description and Features

The Comanche 40 Night Vision Clip-On (NVCO) system uses the latest advances in night vision clip-on technology. Designed for mid-range nighttime shooting, the Comanche 40 delivers exceptional clarity, reliability, and versatility providing the most significant functionality and features at the lowest possible price.
The Comanche 40 is mounted to a standard Weaver or Picatinny rail in front of an existing day scope; transforming it into a Night Vision Device with no re-zeroing required. This NVCO can be used with day scopes of up to 12x magnification for optimal performance and is equipped with a quick release mount and wireless remote control. It provides unmatched target acquisition and enhanced aiming capabilities, making it extremely practical and effective during the most challenging missions.

Simple, quick conversion of daytime scopes to NVDs
Manual gain control
Mounts in front of any daytime scope, no rezeroing required
Equipped with a wireless remote control
Powered by a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery
Bright-light cut-off system
Quick-release mount
Limited 3-Year Warranty

SPECIFICATIONS

Image Intensifier Tube	Gen 2+ "White Phosphor Level 1" International
Cosmetic level of IIT	NW1i the best quality
Resolution	51-64 lp/mm
Visible Spots	Clear FOV
NW1i	manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.
Magnification	1x
Lens System	80 mm; F/1.44
FOV	12°
Focus Range	10 m to Infinity
Exit Pupil	40 mm
Controls	Direct
Led Indicators	Low battery; Excessive light conditions
Manual Gain Control	Yes
Bright Light Cut-Off	Yes
Automatic Shut-Off System	Yes
Infrared Illuminator	Detachable Long Range IR Illuminator
Battery Type	One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)	Up to 60 hours (3 V) at 20°C; up to 30 hours (1. 5 V) at 20°C
Operating Temperature Range	-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range	-50°C to +50°C (-58°F to +122°F)
Weight	1.04 kg (2.3 lbs)
Overall Dimensions	189 × 104 × 90 mm (7.4 × 4.1 × 3.5 in)
Package Includes	Night Vision Clip-On, Remote Control, Sioux850, Lens Cloth, Light Suppressor for Day Scope, Light- Suppressor, Hood, Quick Release Mount, Mount for IR Illuminator, Soft Carrying Case

optional equipment

Hard Case

PART NO.: 6610HCS1

Protective case, made of solid, robust material and designed special for safe storage and transportation.

Email for quote

AGM Sioux940 Long-Range Infrared Illuminator comes included with Rechargeable Battery and Charger

PART NO.: 501SIOUX940IR1

AGM Extra Long Range Infrared Illuminators provide greater, image-intensified viewing capabilities for operations in little to no ambient light. Infrared illuminators are used in areas where the level of natural light is not sufficient. An IR illuminator provides near-infrared light, which, although invisible to the naked eye, can greatly enhance the performance of Night Vision devices. The illuminator features adjustments for field-of-view divergence and output power. AGM long range IR illuminators significantly extend the capabilities of Night Vision weapon sights and observation devices.

€ 185.00
