AGM COBRA TB50-336 THERMAL IMAGING BI-OCULAR

3093453006CO51

DISCONTINUED

Downloads

Description and Features

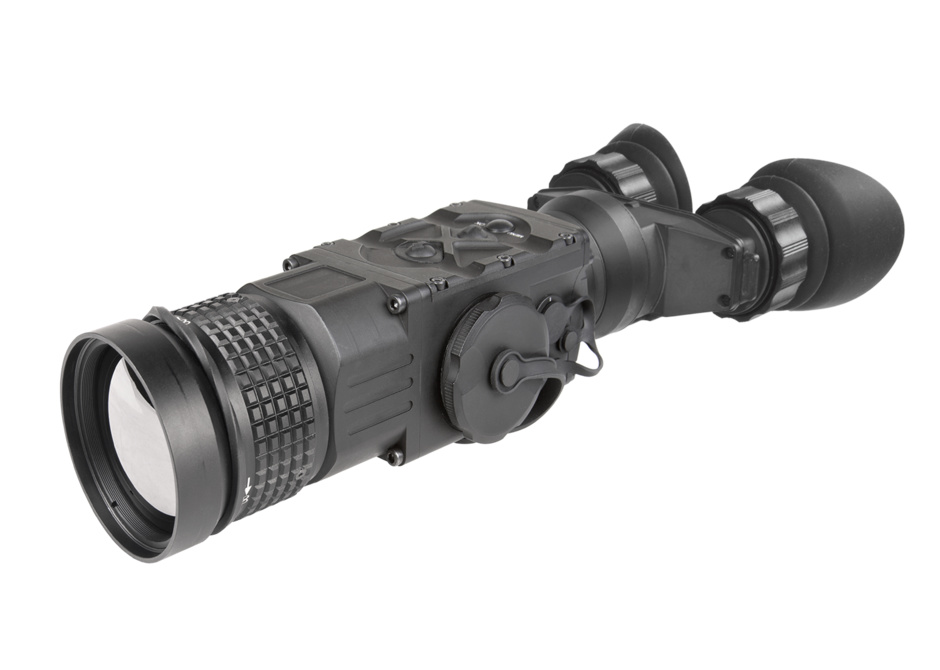

The AGM Cobra is the latest and most technologically-advanced thermal imaging device for observation currently available on the market. Based on the FLIR Tau 2 VOx microbolometer core, the Cobra offers a variety of image palettes: white hot/black hot/ Rainbow, etc. that can be easily adapted depending on different environmental conditions. Bi-ocular is made of high-grade aircraft aluminum alloy, making the unit both durable and lightweight. Due to its waterproof capability the Cobra performs well even in severe weather conditions and challenging environments.
The Cobra’s user-friendly interface, comfortable and ergonomic buttons, together with the wireless remote control makes adoption and application incredibly simple.
This high-tech bi-ocular can take either two CR123A 3V Lithium Batteries or two CR123 rechargeable batteries, with voltage ranging from 3.0 V to 3.7 V. In addition, the external battery bank connected via standard micro-USB port provides an additional operating time.

FLIR Tau 2 17μm pitch thermal sensor
Dual eye viewing system for comfortable, extended viewing sessions
Lightweight and robust design
Easy to operate device
Manually adjustable eyepiece and objective lens
Real-time display
Multiple color palettes
2x, 4x, and 8x Digital Zoom
Waterproof
External Wi-Fi module (optional)
Integral MIL-STD-1913 rail on unit for optional accessories
Powered by two standard CR123A batteries
External power supply
Optional video recording
Tripod mountable
3-Year warranty

SPECIFICATIONS

Detector type	FLIR Tau 2 336 x 256 17μm Uncooled Microbolometer
Refresh rate	60 Hz
Start up	3 seconds
Lens system	50 mm; F/1.0
Optical magnification	2.9×
Field of view (H × X)	7.8° × 5.9°
Digital zoom	2×, 4×
Diopter adjustment range	-5 to +5 dpt
Focusing range	5 m to infinity
Display	(800x600)
Video output	PAL (768x574 pixels)/ NTSC (640x480 pixels)
Temperature imaging palettes	White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM
Interfacing	Micro-USB (Power bank 5V); Universal S620 connector (Power In, Analog Video In/Out, Wi-Fi Attachment, HD Recorder, Extended Battery Pack)
Battery Type	Two CR123A 3V Lithium Batteries or CR123 Type Rechargeable Batteries with Voltage from 3.0V to 3.7V (2)
Battery Life (Operating)	Up to 4 hr (optional up to 12 hrs)
External Power Supply	Power bank (5V) via Micro-USB port; Extended battery pack (6V) or 6V/600 mA power supply via S620 connector
Operating Temperature Range	-40°C to +50°C (-40°F to +122°F)
Environmental Rating	Waterproof
Weight	0.9 kg (1.9 lbs)
Overall Dimensions	288 x 109 x 60 mm (11.3 x 4.2 x 2.3 in)
