Refurbished AGM ASP TM35-384 THERMAL IMAGING MONOCULAR

PART NO.: 3093451006AS31

€ 1,519.00 € 2,026.00

Other Models ARE Also Available:

Package Includes

Downloads

Description and Features

limited quantity 3 pcs

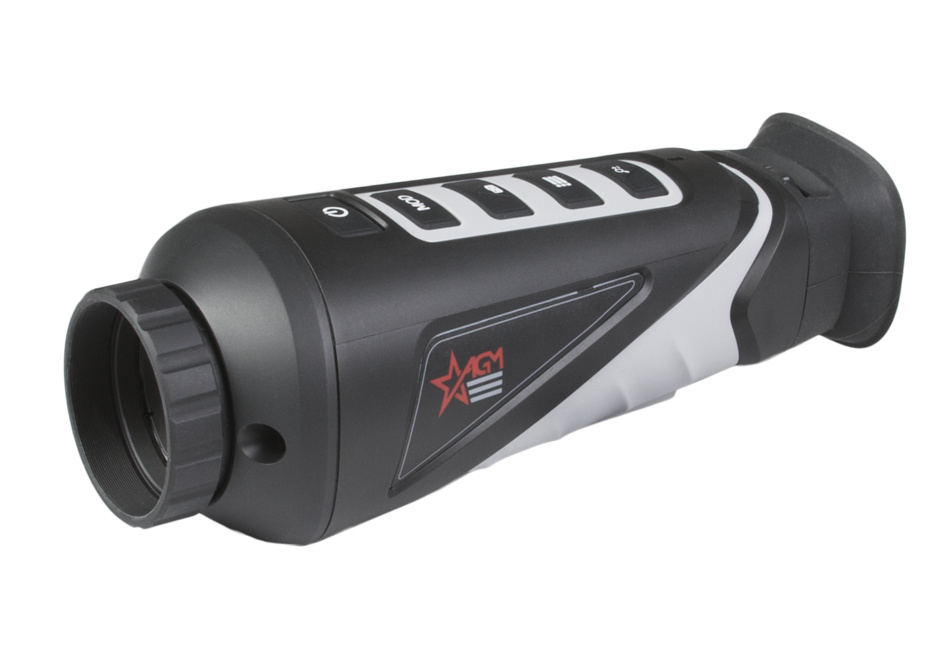

The Asp TM-384 handheld observational thermal monocular is equipped with a 384 × 288 infrared detector and a 1024×768 OLED display. It supports functions of observation, hot spot tracking, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.

Please contact us for additional information info@agmglobalvision.eu

FUNCTIONS
Distance Measurement: The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark: The device detects and marks the hot spot of highest temperature.
Wi-Fi & Hot Spot: Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
Mode Switch: Device supports pallet switch and distance measurement.
Storage: Built-in memory module supports video recording/snapshot capturing.
Digital Zoom: Device supports 1×, 2x and 4× digital zoom.

384 × 288 resolution, high sensitivity Vox detector
Adaptive AGC, DDE, 3D DNR, NETD less than 35 mk (@25°C), F#=1.0
1024 × 768 resolution 0.39-inch OLED display
Built-in rechargeable Li-ion battery
Up to five hours continuous running (with Wi-Fi hot spot function off)
Wi-Fi hot spot
6 months warranty
free shipping within EU

SPECIFICATIONS

Detector Type	Vanadium Oxide Uncooled Focal Plane Arrays
Resolution	384 × 288
Refresh Rate	50 Hz
Diopter Adjustement	-5 to +3 dpt
Detector Pitch	17μm
Response Wavelength	8μm to 14μm
NETD	< 35mk (@25°C, F#=1.0)
Lens Focal Length	35mm
Field of View	10.7° × 8°
F-number	1.0
Optical Magnification	2.4x
Digital Zoom	1x, 2x, 4x
FFC (Flat Field Correction)	Auto, Manual, External Correction
Palettes	Black hot, White hot, Red hot, Fusion
Monitor	0.39-inch, OLED, 1024 × 768
Hot Track	Yes
Storage	Built-in memory module (16GB)
Record Video	Support on-board video recording
Capture Snapshot	Yes
Wi-Fi	Yes, Hotspot
Battery	Built-in rechargeable Lithium battery
Battery Operating Time	Up to 5 hours continuous running
Battery Capacity Display	Yes
Working Temperature	-30°C to 55°C (-22°F to 131°F)
Protection Level	IP67
Weight	480 g (16.9 oz)
Dimensions	202 × 74 × 66 mm (7.9 × 2.9 × 2.6 in)
Recognition Range	(Vehicles: 1.4×4.0m) - 789m (Humans: 1.8×0.5m) - 257m
Detection Range	(Vehicles: 1.4×4.0m) - 3157m (Humans: 1.8×0.5m) - 1029m
Identification Range	(Vehicles: 1.4×4.0m) - 395m (Humans: 1.8×0.5m) - 129m
