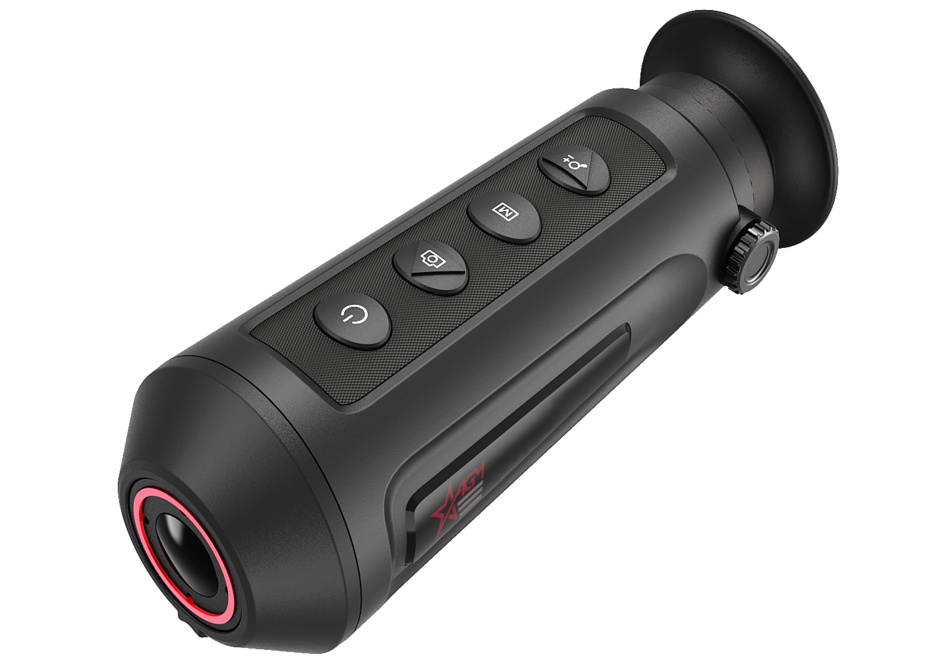

AGM Asp-Micro TM-160 THERMAL IMAGING MONOCULAR

PART NO.: 3093251001AM10
product
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
€ 529.00 € 549.00
Add to cart
Other Models ARE Also Available:
Package Includes
    Packing Box | User Manual | Lens Tissue | Soft Carrying Case | USB Cable | Neck belt

Description and Features

The Asp-Micro handheld observational thermal monocular is equipped with a 160×120 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, antismuggling, criminal seizing, hiking, travel, and hunting, etc.



FUNCTIONS

Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.

Mode Switch:
Device supports pallet switch and distance measurement.

Storage:
Built-in memory module supports video recording/snapshot capturing.

Digital Zoom:
Device supports 1×, 2×, and 4× digital zoom.

Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.

  • 160×120 resolution, high sensitivity detector
  • Adaptive AGC, DDE, 3D DNR
  • 720×540 resolution LCOS display
  • Built-in rechargeable Lithium battery
  • More than 7 hours continuous running (with Wi-Fi hotspot function off)
  • Wi-Fi hotspot
  • Type-C interface
  • Limited 3-year warranty

SPECIFICATIONS

Detector Type Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 160×120
Refresh Rate 50 Hz
Recognition Range (Vehicles: 1.4×4.0m) - 140m (Humans: 1.8×0.5m) - 46m
Detection Range (Vehicles: 1.4×4.0m) - 559m (Humans: 1.8×0.5m) - 182m
Identification Range (Vehicles: 1.4×4.0m) - 70m (Humans: 1.8×0.5m) - 23m
Response Waveband 8μm to 14μm
NETD less than 35 mk (@25°C), F#=1.1
Lens (Focal Length) 6.2 mm
Aperture F1.1
Field of View 15.61° × 11.74° (H × V)
Magnification
Digital Zoom 1×, 2×, 4×
Monitor 720×540, 0.2 inch, LCOS
FFC (Flat Field Correction) Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion
Highest Temperature Spot Tracking Yes
Wi-Fi Hotspot Yes
Standby Mode Yes
Storage Built-in memory module (8 GB)
Record Video On-board video recording
Capture Snapshot Yes
Battery Type Built-in rechargeable Lithium battery
Battery Operating Time More than 7 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display Yes
Power 5 VDC/2 A, 1.5 W, USB Type-C Interface
Working Temperature -20°C to 55°C (-4°F to 131°F)
Protection Level IP67
Drop Test Height 1.5 m (4.9 feet)
Dimension 161 × 61 × 57 mm (6.3 × 2.4 × 2.2 in)
Weight 270 g (0.6 lb)
