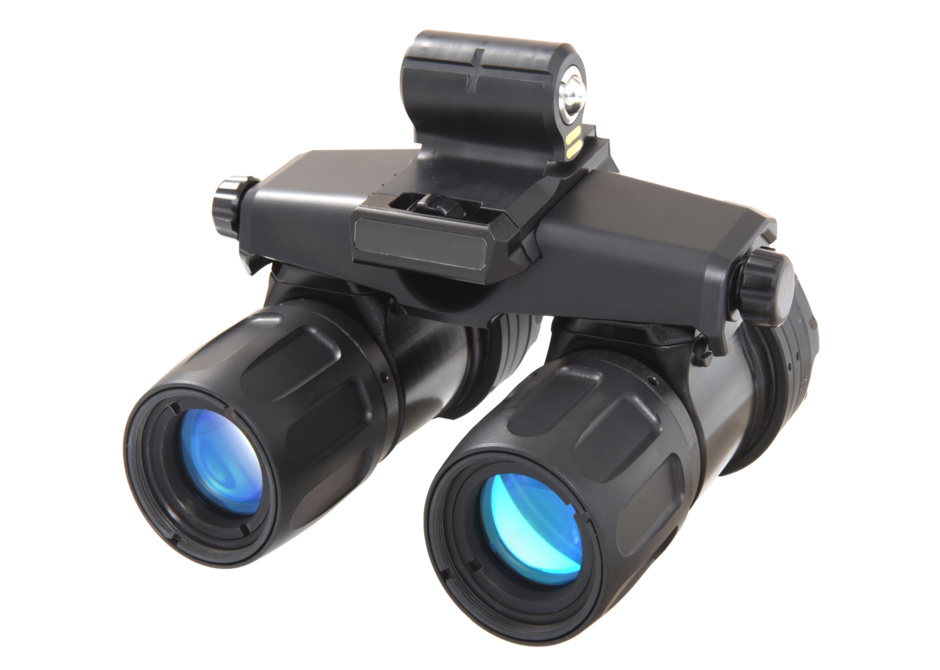

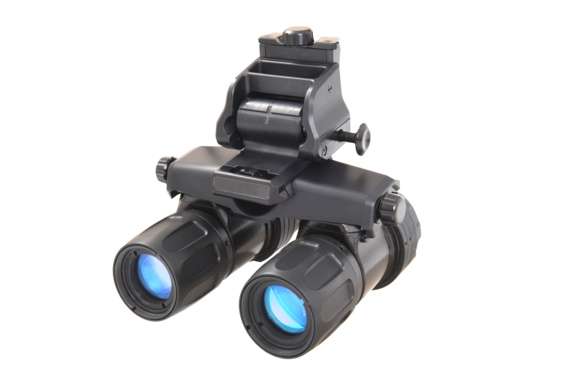

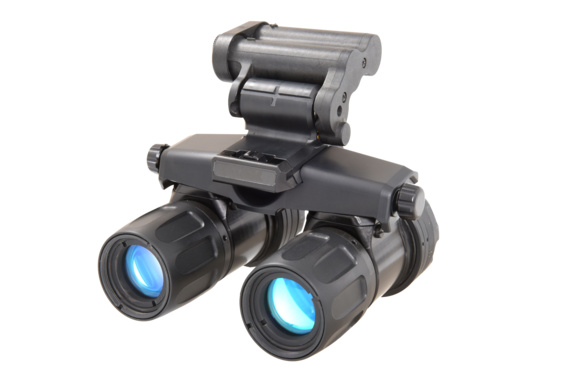

The Apache A-9 Aviator Night Vision Goggle System represents a variant of the AN/AVS-6(v)/9 series ANVIS Goggle, which is the US Army/Navy standard fielded issue. AGM Global Vision brings a new level of performance to the system by offering the Apache A-9 with both standard P-43 green and high contrast P-45 white phosphor image intensifier tubes.

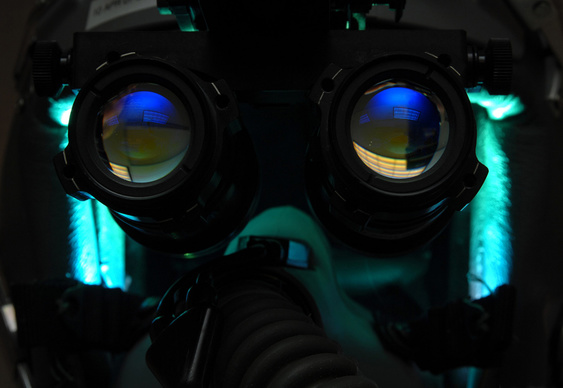

The Apache A-9 System is equipped with Class A or Class B filter coatings on the objective lenses and offer a 40° minimum field of view. The large format 27mm eye relief eyepieces can be adjusted from +2 to -6 diopters for most corrective lenses. In addition, the Apache A-9

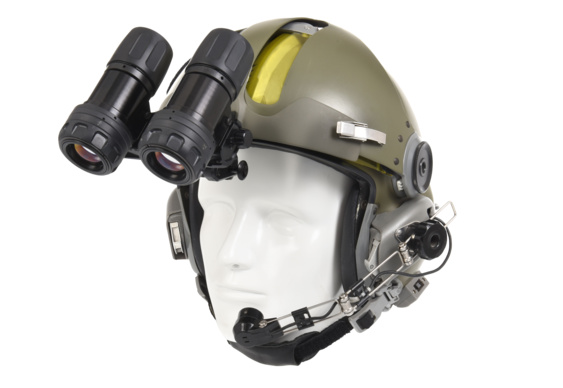

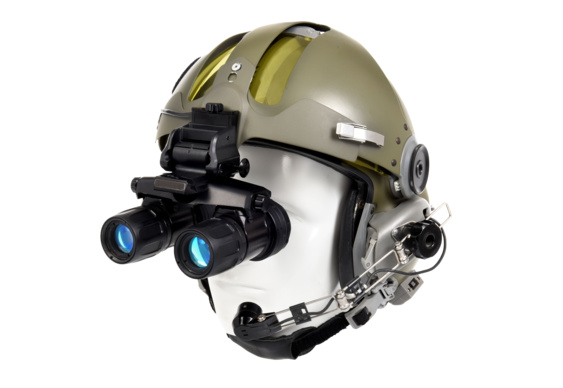

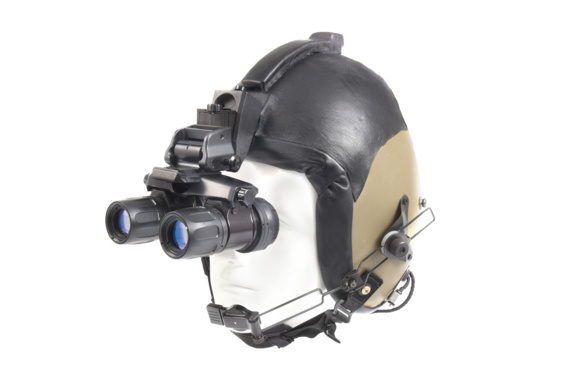

accommodates inter-pupillary spans between 51mm to 72mm and offers over 10° tilt adjustments to compensate for a wide range of in-service helmet applications.
| Field of View: | 40° |
| Magnification: | 1.0X |
| System Resolution: | 1.3 cy/mr minimum |
| Diopter Adjustment: | -6 to +2 dpt |
| IPD: | 52mm – 72mm |
| Vertical Adjustment: | 25mm |
| Fore/Aft Adjustment: | 27mm |
| Collimation: | |
| Convergence: | 1.0° |
| Dipvergence: | 0.33° |
| Tilt Adjustment: | 10° |
| Focus Range: | 25cm to infinity |
| Battery Type | AA 1.5VDC / 80 hours battery pack load |
| Binocular: | 500g |
| Mount: | 150g |
| Environmental: | MIL-STD-810H |

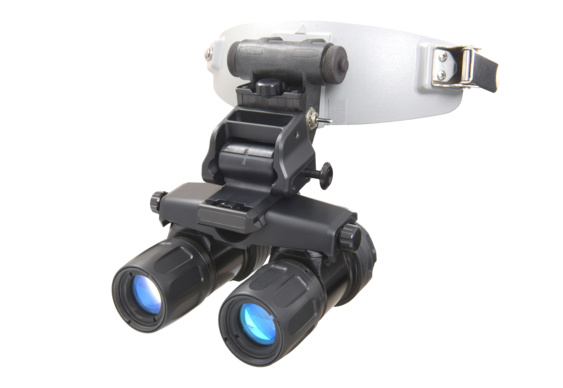

| Package includes | Apache A-9 Unit Assembly, Helmet Mount Assembly, Soft Carrying Case, Counterweight, 4 each AA Batteries, Battery Pack Assembly, Neck Lanyard, Lens Tissue, Screwdriver, Manual |
